Description
Brand - RBC
Item Number - Y96PWI-CR DB RBC
Category - Thin Section Ball Bearing (Y-PWI Series)

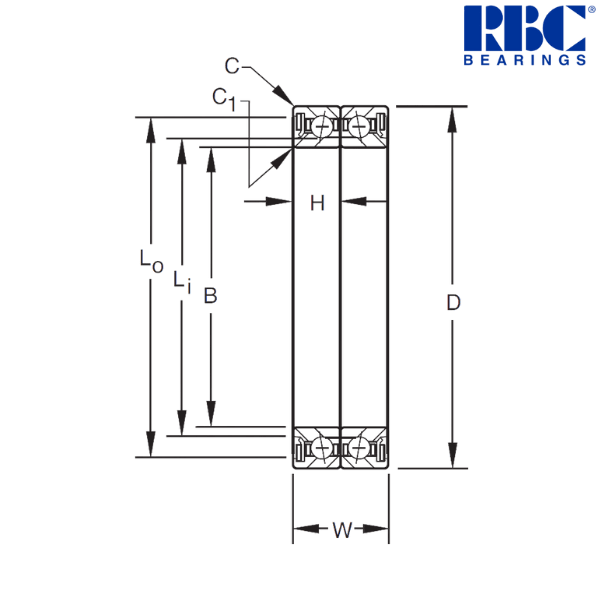

Principal Dimensions & Load Ratings (Imperial) :
Maximum Bore Diameter (B) - 6 inch
Minimum Bore Diameter (B) - 5.999 inch
Maximum Outside Diameter (D) - 7.125 inch
Minimum Outside Diameter (D) - 7.124 inch
Width (W) - 1.25 (+.000 to -.020) inch
Width (H) - 0.625 (+.000 to -.005) inch
Approximate Diameter (Li) - 6.252 inch
Approximate Diameter (Lo) - 6.846 inch
Inner Ring Radius (C1)*** - 0.031 inch
Outer Ring Radius (C)*** - 0.031 inch
Ball Number - 52 pcs.
Ball Size - 0.3125 inch
Weight - 1.39 lbs
Type of Seal - Synthetic Rubber Seal Retained by Cadmium Plated Spring Steel or Stainless Steel Washer
Radial Limit Load Rating - 55800 lbf
Thrust Limit Load Rating - 25400 lbf
Limit Moment Rating - 56800 lbf-in
Moment Constant - 0.447 per inch
Rated Radial Capacity at 100 RPM** Based on 7500 Hours Average Life* - 4030 lbf
Rated Radial Capacity at 300 RPM** Based on 7500 Hours Average Life* - 2800 lbf
Rated Radial Capacity at 500 RPM** Based on 7500 Hours Average Life* - 2360 lbf
Nominal Preload - 130 lbf
Principal Dimensions & Load Ratings (Metric) :
Maximum Bore Diameter (B) - 152.4 mm
Minimum Bore Diameter (B) - 152.375 mm
Maximum Outside Diameter (D) - 180.975 mm
Minimum Outside Diameter (D) - 180.95 mm
Width (W) - 31.75 (+.00 to -.51) mm
Width (H) - 15.88 (+.00 to -.13) mm
Approximate Diameter (Li) - 158.8 mm
Approximate Diameter (Lo) - 173.89 mm
Inner Ring Radius (C1) - 0.79 mm
Outer Ring Radius (C) - 0.79 mm
Weight - 0.63 kg
Radial Limit Load Rating - 250000 N
Thrust Limit Load Rating - 112000 N
Limit Moment Rating - 641730 N-cm
Moment Constant - 0.175 per cm
Rated Radial Capacity at 100 RPM** Based on 7500 Hours Average Life* - 18000 N
Rated Radial Capacity at 300 RPM** Based on 7500 Hours Average Life* - 12500 N
Rated Radial Capacity at 500 RPM** Based on 7500 Hours Average Life* - 10400 N
Nominal Preload - 578 N
Description of Suffixes and Prefixes :
Y - Ceramic Balls
Other salient points about this Bearing :
• Mounted in duplex pairs.
• Exposed surfaces except bore are cadmium plated.
• Prepacked with lubricant conforming to MIL-G-25537.
* These ratings are for single bearings.
** Heavy line indicates limiting speeds recommended for sealed bearings; for higher speeds, seals should be removed.
*** Maximum shaft or housing fillet radius which bearing corners will clear.

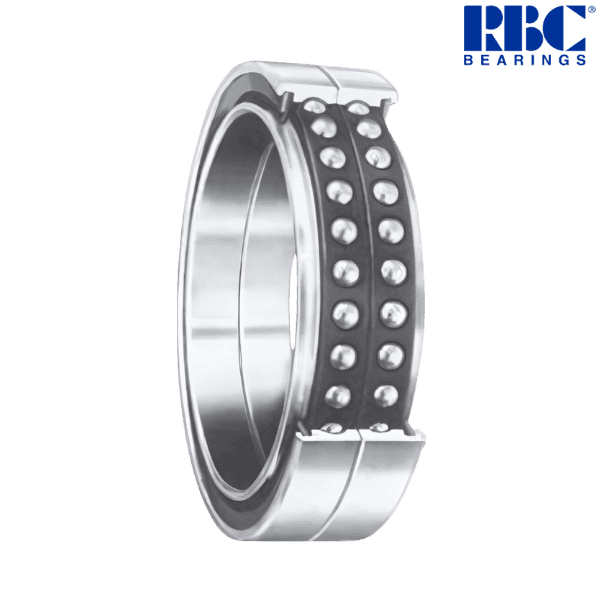

♦ ♦ Images are for representation purposes only
