Brand - RBC
Item Number - Y224PWI-CR DB RBC
Category - Thin Section Ball Bearing (Y-PWI Series)

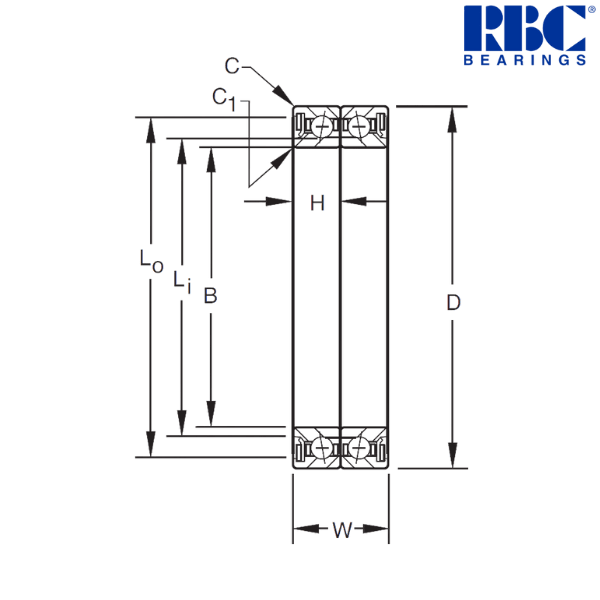

Principal Dimensions & Load Ratings (Imperial) :
Maximum Bore Diameter (B) - 14 inch
Minimum Bore Diameter (B) - 13.9984 inch
Maximum Outside Diameter (D) - 15.5 inch
Minimum Outside Diameter (D) - 15.4984 inch
Width (W) - 1.5 (+.000 to -.020) inch
Width (H) - 0.75 (+.000 to -.005) inch
Approximate Diameter (Li) - 14.363 inch
Approximate Diameter (Lo) - 15.117 inch
Inner Ring Radius (C1)*** - 0.031 inch
Outer Ring Radius (C)*** - 0.031 inch
Ball Number - 95 pcs.
Ball Size - 0.375 inch
Weight - 5.81 lbs
Type of Seal - Synthetic Rubber Seal Retained by Composition Washer
Radial Limit Load Rating - 147000 lbf
Thrust Limit Load Rating - 66800 lbf
Limit Moment Rating - 302600 lbf-in
Moment Constant - 0.221 per inch
Rated Radial Capacity at 100 RPM** Based on 7500 Hours Average Life* - 7090 lbf
Rated Radial Capacity at 300 RPM** Based on 7500 Hours Average Life* - 4920 lbf
Rated Radial Capacity at 500 RPM** Based on 7500 Hours Average Life* - 4140 lbf
Nominal Preload - 330 lbf
Principal Dimensions & Load Ratings (Metric) :
Maximum Bore Diameter (B) - 355.6 mm
Minimum Bore Diameter (B) - 355.559 mm
Maximum Outside Diameter (D) - 393.7 mm
Minimum Outside Diameter (D) - 393.659 mm
Width (W) - 38.1 (+.00 to -.51) mm
Width (H) - 19.05 (+.00 to -.13) mm
Approximate Diameter (Li) - 364.82 mm
Approximate Diameter (Lo) - 383.97 mm
Inner Ring Radius (C1) - 0.79 mm
Outer Ring Radius (C) - 0.79 mm
Weight - 2.64 kg
Radial Limit Load Rating - 655000 N
Thrust Limit Load Rating - 300000 N
Limit Moment Rating - 3418775 N-cm
Moment Constant - 0.088 per cm
Rated Radial Capacity at 100 RPM** Based on 7500 Hours Average Life* - 31500 N
Rated Radial Capacity at 300 RPM** Based on 7500 Hours Average Life* - 22000 N
Rated Radial Capacity at 500 RPM** Based on 7500 Hours Average Life* - 18300 N
Nominal Preload - 1468 N
Description of Suffixes and Prefixes :
Y - Ceramic Balls
Other salient points about this Bearing :
• Mounted in duplex pairs.
• Exposed surfaces except bore are cadmium plated.
• Prepacked with lubricant conforming to MIL-G-25537.
* These ratings are for single bearings.
** Heavy line indicates limiting speeds recommended for sealed bearings; for higher speeds, seals should be removed.
*** Maximum shaft or housing fillet radius which bearing corners will clear.

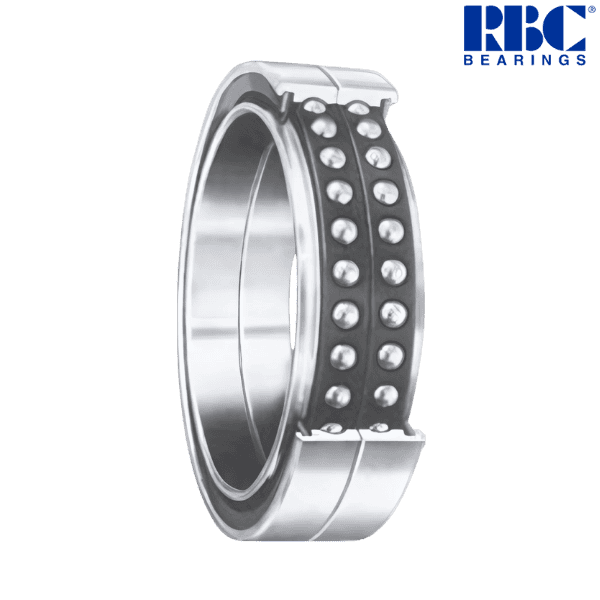

♦ ♦ Images are for representation purposes only
