Y 64 RBC

Brand - RBC
Item Number - Y 64 RBC
Also Known As - Y64
Basic Number - (-64)
Yoke Rollers (with Seal) - Y 64 L
Yoke Rollers (Sealed and Crowned Outer Ring) - CY 64 L
Category - Yoke Rollers (Without Seals and Cylindrical Outer Ring)

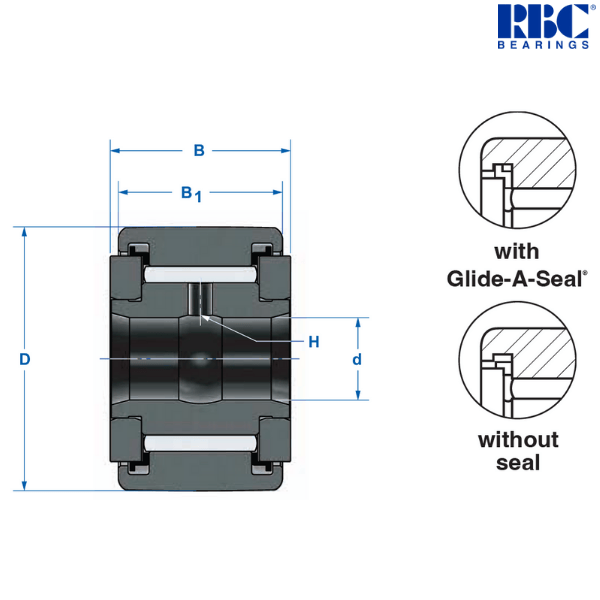

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 2 inch
Outside Diameter (D) - 2 (+ .000 to - .001) inch
Roller Width (B1) - 1.25 (+ .000 to - .005) inch
Crown Radius (CR) - 24 inch
Nominal Inside Diameter (d) - 0.625 inch
Minimum Inside Diameter (d) - 0.6246 inch
Maximum Inside Diameter (d) - 0.6252 inch
Overall Width (B) - 1.3125 (+.005 to - .010) inch
Oil Hole (H) - 0.093 inch
Speed Limit - 1570 rpm
Dynamic Capacity (C) - 9600 lbf *
Static Capacity (C0) - 21200 lbf **
Track Capacity @ 40 Rc - 6500 lbf
Maximum Transition Fit - 0.6247 inch
Minimum Transition Fit - 0.6243 inch
Maximum Press Fit - 0.6257 inch
Minimum Press Fit - 0.6253 inch
Minimum Boss Diameter - 1.2 inch
Approximate Weight - 0.92 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight (kg) - 0.417 kg

Description of Suffixes and Prefixes :
Y - Yoke Style

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• Axial clamping of the inner ring is recommended

* Normal operating loads should not exceed 50% of the bearing dynamic capacity
** Bearing Static Capacity provided for comparison only

♦ ♦ Images are for representation purposes only
