Y 192 RBC

Brand - RBC
Item Number - Y 192 RBC
Also Known As - Y192
Basic Number - (-192)
Yoke Rollers (with Seal) - Y 192 L
Yoke Rollers (Sealed and Crowned Outer Ring) - CY 192 L
Category - Yoke Rollers (Without Seals and Cylindrical Outer Ring)

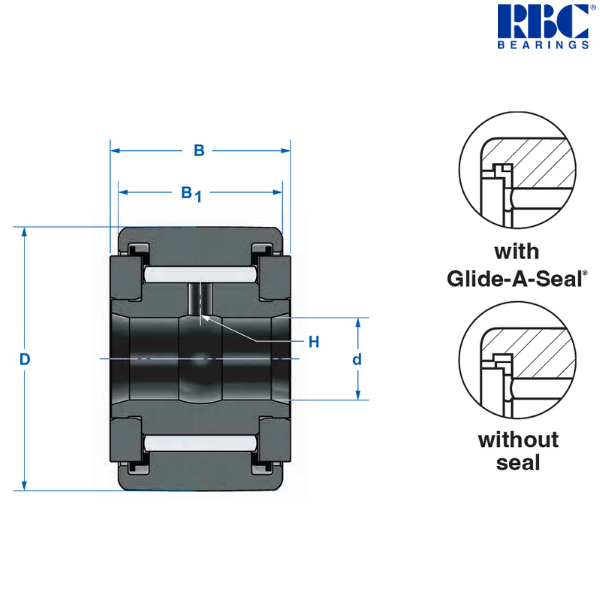

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 6 inch
Outside Diameter (D) - 6 (+ .000 to - .001) inch
Roller Width (B1) - 3.25 (+ .000 to - .005) inch
Crown Radius (CR) - 56 inch
Nominal Inside Diameter (d) - 2.25 inch
Minimum Inside Diameter (d) - 2.2495 inch
Maximum Inside Diameter (d) - 2.2501 inch
Overall Width (B) - 3.3750 (+.005 to - .010) inch
Oil Hole (H) - 0.187 inch
Speed Limit - 590 rpm
Dynamic Capacity (C) - 62900 lbf *
Static Capacity (C0) - 165500 lbf **
Track Capacity @ 40 Rc - 52000 lbf
Maximum Transition Fit - 2.2496 inch
Minimum Transition Fit - 2.2491 inch
Maximum Press Fit - 2.2508 inch
Minimum Press Fit - 2.2503 inch
Minimum Boss Diameter - 4.5 inch
Approximate Weight - 21.4 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight (kg) - 9.705 kg

Description of Suffixes and Prefixes :
Y - Yoke Style

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• Axial clamping of the inner ring is recommended

* Normal operating loads should not exceed 50% of the bearing dynamic capacity
** Bearing Static Capacity provided for comparison only

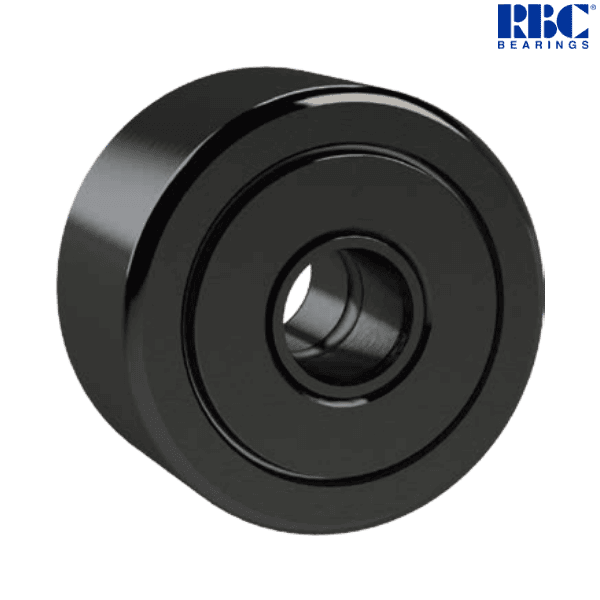

♦ ♦ Images are for representation purposes only
