Y 112 L RBC

Brand - RBC
Item Number - Y 112 L RBC
Also Known As - Y112L
Basic Number - (-112)
Yoke Rollers (without Seal) - Y 112
Yoke Rollers (Sealed and Crowned Outer Ring) - CY 112 L
Category - Yoke Rollers (With Seals and Cylindrical Outer Ring)

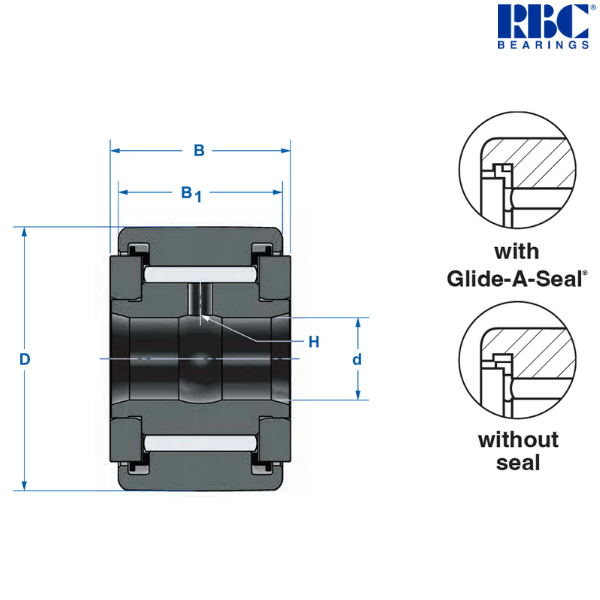

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 3.5 inch
Outside Diameter (D) - 3.5 (+ .000 to - .001) inch
Roller Width (B1) - 2 (+ .000 to - .005) inch
Crown Radius (CR) - 30 inch
Nominal Inside Diameter (d) - 1.125 inch
Minimum Inside Diameter (d) - 1.1245 inch
Maximum Inside Diameter (d) - 1.1251 inch
Overall Width (B) - 2.0625 (+.005 to - .010) inch
Oil Hole (H) - 0.125 inch
Speed Limit - 980 rpm
Dynamic Capacity (C) - 24300 lbf *
Static Capacity (C0) - 63250 lbf **
Track Capacity @ 40 Rc - 17300 lbf
Maximum Transition Fit - 1.1246 inch
Minimum Transition Fit - 1.1241 inch
Maximum Press Fit - 1.1258 inch
Minimum Press Fit - 1.1253 inch
Minimum Boss Diameter - 2.39 inch
Approximate Weight - 4.52 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight (kg) - 2.05 kg

Replaces (Direct Interchange)
McGill - CYR-3 1/2-S
KOYO - YCRS-56

Replaces :
RBC - Y112
McGill - CYR3 1/2
KOYO - YCR56

Description of Suffixes and Prefixes :
Y - Yoke Style
L - Sealed

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• Axial clamping of the inner ring is recommended

* Normal operating loads should not exceed 50% of the bearing dynamic capacity
** Bearing Static Capacity provided for comparison only

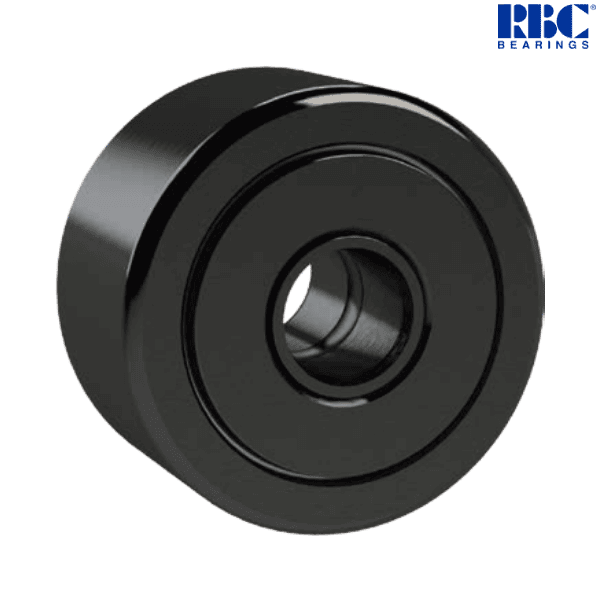

♦ ♦ Images are for representation purposes only
