| Inner Diameter | 685.8 mm |
| Outer Diameter | 914.4 mm |
| Height | 79.375 mm |
| Basic Dynamic Load Rating, Axial | 344000.0 N |
| Basic Dynamic Load Rating, Radial | 270000.0 N |
| Axial Load Factor | 0.45 |
| Preload | 0.075 to 0.100 mm |
| Chamfer Diameter | 6.6 mm |
Description

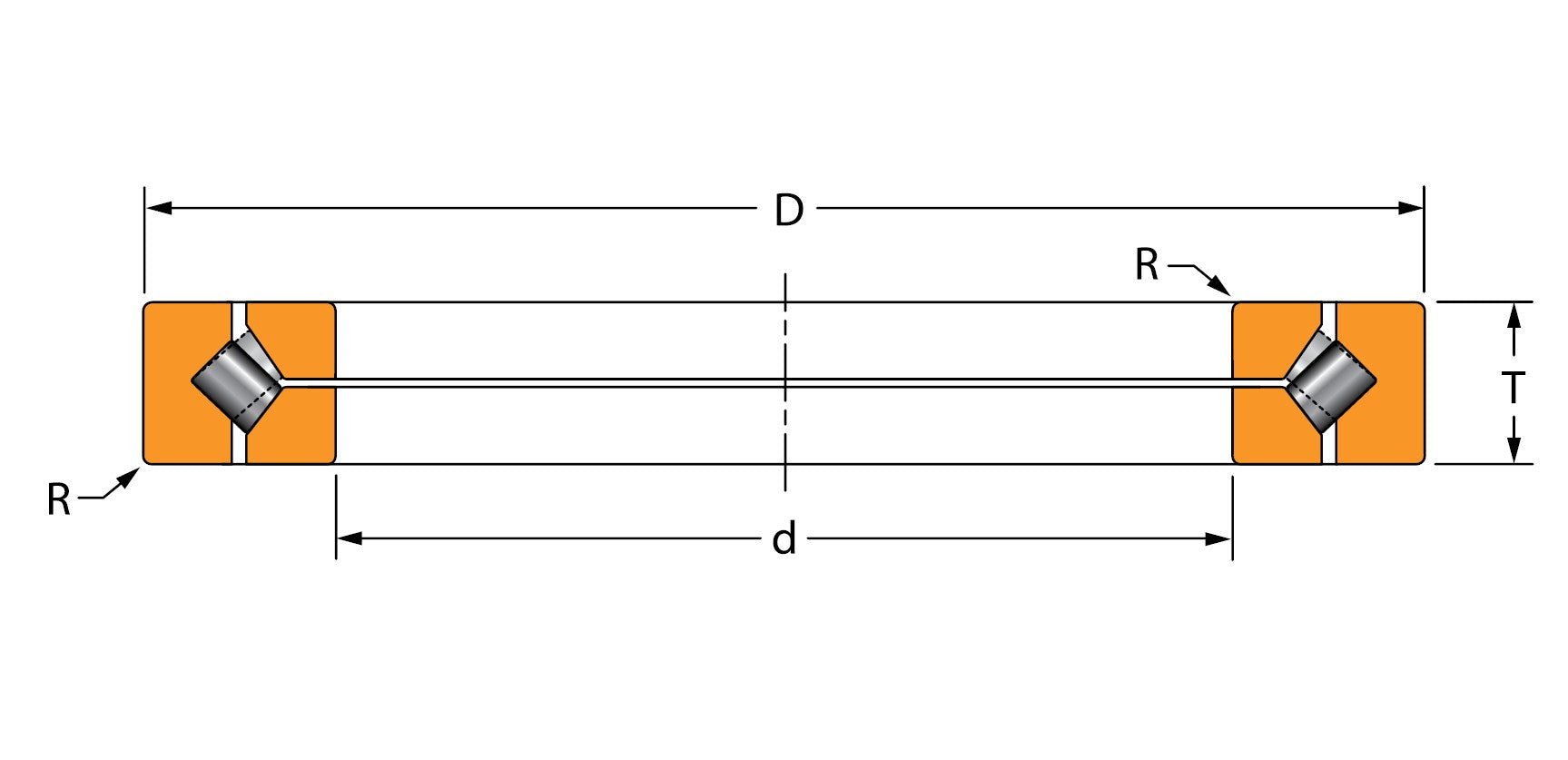

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Chamfer Diameter
Other salient points to be noted:
-
Ultra-Compact Design: Achieves the lowest possible center of gravity, making it perfect for precision rotational applications.
-
Exceptional Stability: The effective spread and high stiffness of the crossed roller set greatly enhance overall bearing stability.
-
Optimized for Vertical Machining: The ideal choice for table bearings in vertical machining operations.
-
Smooth Operation: Provides exceptionally low starting torque for efficient performance.
-
Hassle-Free Setup: Simplified construction ensures easy, straightforward installation and adjustments.
-
Customizable Precision: Offered in a variety of precision classes to meet your exact specifications.

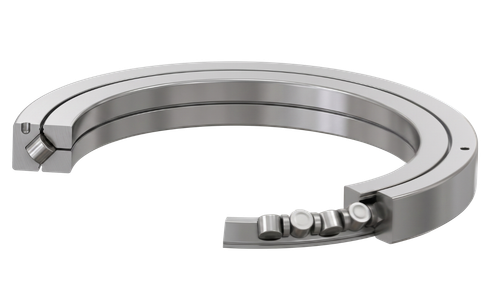

** Images are for representation purposes only
