XA200352H INA

INA

Download Data Sheet

Country Of Origin: EU

Variant

Share this product

Brand - INA
Item Number - XA200352H INA

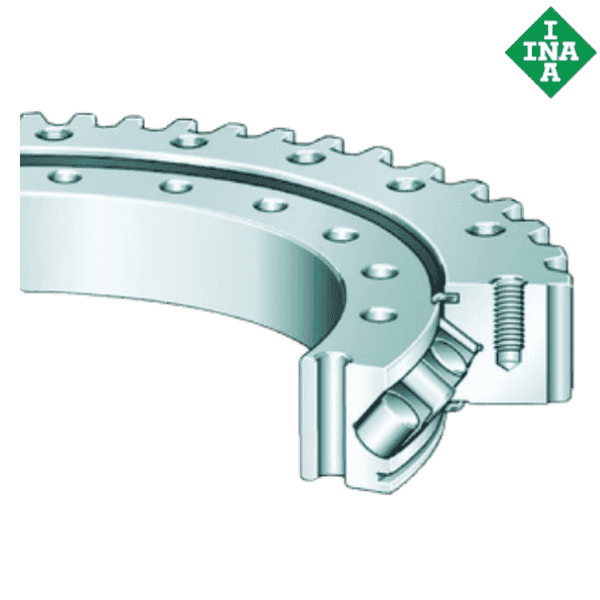

Category - Slewing Ring Crossed Roller Bearing
Weight (kg) - 34.5

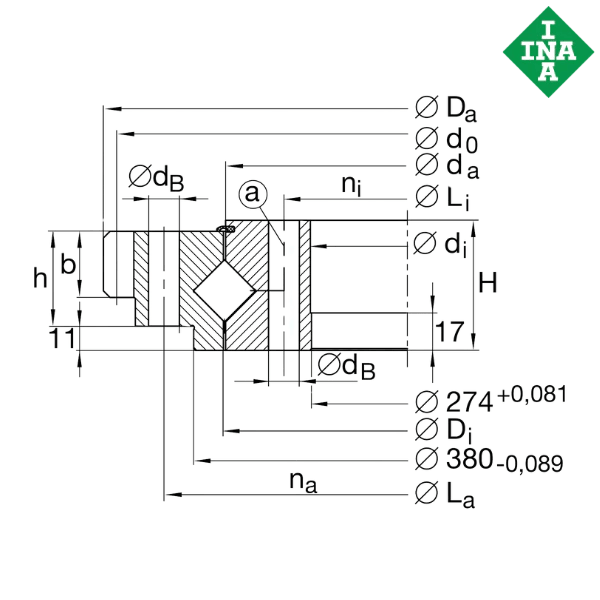

Outer Diameter (Da) mm - 462
Inner Diameter (di) mm - 274
Inner Diameter Outer Ring (Di) mm - 353
Outside Diameter Inner Ring (da) mm - 351
Height (H) mm - 59
Height of Individual Ring (h) mm - 54
Pitchcircle Diameter Fixing Holes Outer Ring (La) mm - 407
Pitchcircle Diameter Fixing Holes Inner Ring (Li) mm - 298
Number of Fixing Holes in Outer Ring (na) - 24
Number of Fixing Holes in Inner Ring (ni) - 24
Fixing Bore (dB) mm - 14
Maximum Radial Load Fixing Screws (Friction Locking) (Fr) kN - 99.1
Pitch Circle Diameter Gearing (d0) mm - 450
Modul of Gearing (m) mm - 6
Number of Teeth (z) - 75
Width Gearing (b) mm - 30
Maximum Tooth Force Root Fatigue Strenght (at a Shock Factor of 1,2) (Fz norm) kN - 20.9
Maximum Tooth Force Against Tooth Fracture (at a Shock Factor of 1,35) (Fz max) kN - 34.5

** Images are for representation purposes only
