Description
Brand - TIMKEN
Item Number - X33216/Y33216 (K161554 / JYH14099R) TIMKEN
Also Known As - X33216 - Y33216 (K161554 - JYH14099R)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)
Bore Diameter (d) mm - 80
Bore Diameter (d) inch - 3.1496
Outer Diameter (D) mm - 140
Outer Diameter (D) inch - 5.5118
Width (T) mm - 104
Width (T) inch - 4.0945
Width (C) mm - 82
Width (C) inch - 3.2283
Dynamic Radial Rating (C1) N - 517000
Dynamic Radial Rating (C1) lbf - 116000
Factor (e) - 0.43
Factor (Y1) - 1.59
Factor (Y2) - 2.36
Dynamic Radial Rating (90 million revolutions) (C90) N - 76900
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 17300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 56000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 12600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 134000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 30100
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.37
Maximum Shaft Fillet Radius (R) mm - 2.5
Maximum Shaft Fillet Radius (R) inch - 0.1
Backing Shoulder Diameter (db) mm - 97
Backing Shoulder Diameter (db) inch - 3.82
Maximum Housing Fillet Radius (r) mm - 0.5
Maximum Housing Fillet Radius (r) inch - 0.02
Cup Frontface Backing Diameter (Da) mm - 135
Cup Frontface Backing Diameter (Da) inch - 5.31
Weight (kg) - 6.3
Weight (lbs) - 13.88
Inner Spacer - K161554
Outer Spacer - JYH14099R
Inner Part Number - X33216
Outer Part Number - Y33216
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

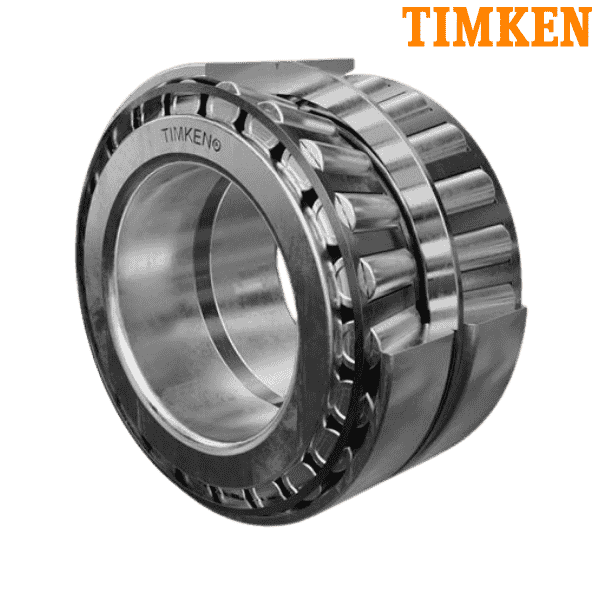

** Images are for representation purposes only
