Description
Brand - TIMKEN
Item Number - X33115/Y33115 (K161389) TIMKEN
Also Known As - X33115 - Y33115 (K161389)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 75
Bore Diameter (d) inch - 2.9528
Outer Diameter (D) mm - 125
Outer Diameter (D) inch - 4.9213
Width (T) mm - 74
Width (T) inch - 2.9134
Width (B) mm - 74
Width (B) inch - 2.9134
Dynamic Radial Rating (C1) N - 356000
Dynamic Radial Rating (C1) lbf - 80000
Factor (e) - 0.4
Factor (Y1) - 1.7
Factor (Y2) - 2.53
Dynamic Radial Rating (90 million revolutions) (C90) N - 53000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 11900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 36100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8110
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 92300
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 20800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.47
Maximum Shaft Fillet Radius (R) mm - 0.3
Maximum Shaft Fillet Radius (R) inch - 0.01
Backing Shoulder Diameter (db) mm - 83
Backing Shoulder Diameter (db) inch - 3.27
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 112
Cup Frontface Backing Diameter (Da) inch - 4.41
Weight (kg) - 3.61
Weight (lbs) - 7.94
Outer Spacer - K161389
Inner Part Number - X33115
Outer Part Number - Y33115
2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

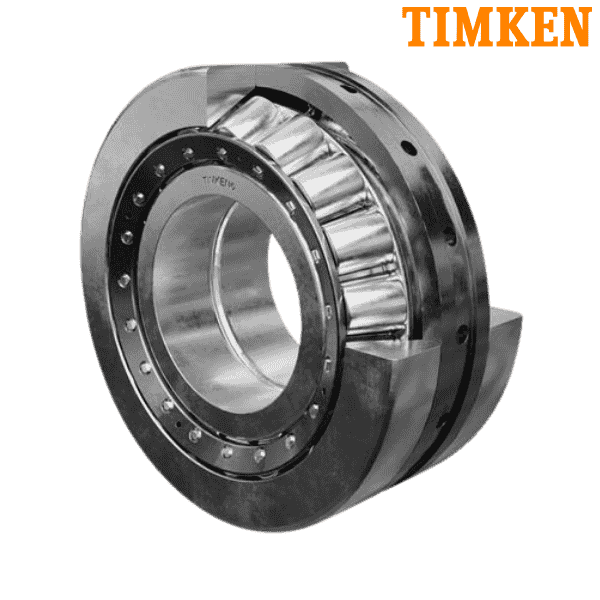

** Images are for representation purposes only
