Description
Brand - TIMKEN
Item Number - X32226M/Y32226M (JY23028-Q) TIMKEN
Also Known As - X32226M - Y32226M (JY23028-Q)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 130
Bore Diameter (d) inch - 5.1181
Outer Diameter (D) mm - 230
Outer Diameter (D) inch - 9.0551
Width (T) mm - 135.5
Width (T) inch - 5.3346
Width (B) mm - 128
Width (B) inch - 5.0394
Dynamic Radial Rating (C1) N - 1190000
Dynamic Radial Rating (C1) lbf - 267000
Factor (e) - 0.44
Factor (Y1) - 1.55
Factor (Y2) - 2.31
Dynamic Radial Rating (90 million revolutions) (C90) N - 177000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 39800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 132000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 29600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 308000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 69200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.34
Maximum Shaft Fillet Radius (R) mm - 1
Maximum Shaft Fillet Radius (R) inch - 0.04
Backing Shoulder Diameter (db) mm - 145
Backing Shoulder Diameter (db) inch - 5.71
Maximum Housing Fillet Radius (r) mm - 3
Maximum Housing Fillet Radius (r) inch - 0.12
Cup Frontface Backing Diameter (Da) mm - 206
Cup Frontface Backing Diameter (Da) inch - 8.11
Weight (kg) - 23.43
Weight (lbs) - 51.69
Outer Spacer - JY23028-Q
Inner Part Number - X32226M
Outer Part Number - Y32226M

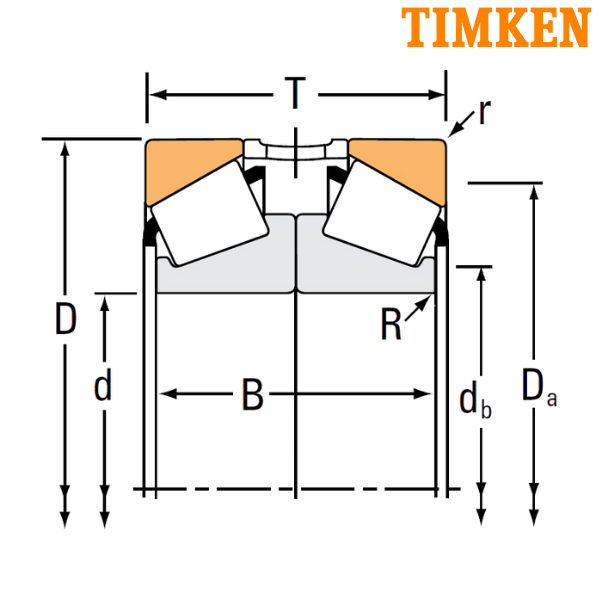

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting
** Images are for representation purposes only
