Description
Brand - TIMKEN
Item Number - X32205-B/Y32205-B (JY5209R) TIMKEN
Also Known As - X32205-B - Y32205-B (JY5209R)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 25
Bore Diameter (d) inch - 0.9843
Outer Diameter (D) mm - 52
Outer Diameter (D) inch - 2.0472
Width (T) mm - 38.5
Width (T) inch - 1.5158
Width (B) mm - 36
Width (B) inch - 1.4174
Dynamic Radial Rating (C1) N - 81800
Dynamic Radial Rating (C1) lbf - 18400
Factor (e) - 0.58
Factor (Y1) - 1.16
Factor (Y2) - 1.72
Dynamic Radial Rating (90 million revolutions) (C90) N - 12200
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 2740
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 12200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2740
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 21200
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 4770
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1
Maximum Shaft Fillet Radius (R) mm - 0.3
Maximum Shaft Fillet Radius (R) inch - 0.01
Backing Shoulder Diameter (db) mm - 31
Backing Shoulder Diameter (db) inch - 1.22
Maximum Housing Fillet Radius (r) mm - 1
Maximum Housing Fillet Radius (r) inch - 0.04
Cup Frontface Backing Diameter (Da) mm - 43.5
Cup Frontface Backing Diameter (Da) inch - 1.71
Weight (kg) - 0.4
Weight (lbs) - 0.88
Outer Spacer - JY5209R
Inner Part Number - X32205-B
Outer Part Number - Y32205-B
2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

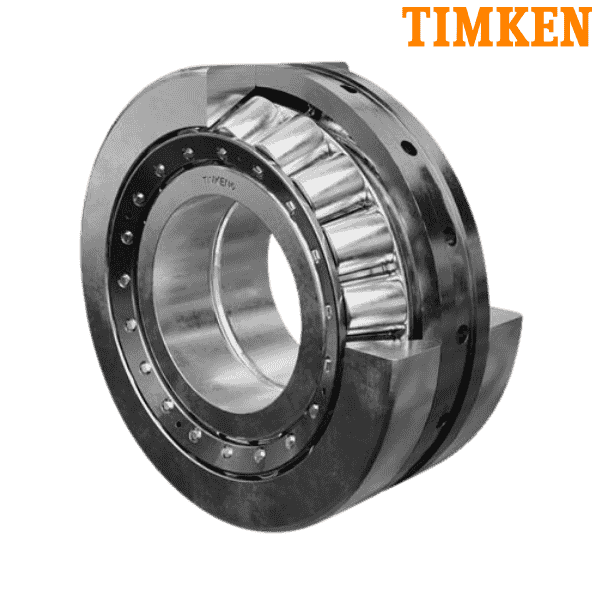

** Images are for representation purposes only
