Description
Brand - TIMKEN
Item Number - X32011X/Y32011X (JXH5506A/JYH9006TSR) TIMKEN
Also Known As - X32011X - Y32011X (JXH5506A - JYH9006TSR)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 55
Bore Diameter (d) inch - 2.1654
Outer Diameter (D) mm - 90
Outer Diameter (D) inch - 3.5433
Width (T) mm - 52
Width (T) inch - 2.0472
Width (C) mm - 40.475
Width (C) inch - 1.5935
Dynamic Radial Rating (C1) N - 196000
Dynamic Radial Rating (C1) lbf - 44000
Factor (e) - 0.41
Factor (Y1) - 1.66
Factor (Y2) - 2.47
Dynamic Radial Rating (90 million revolutions) (C90) N - 29100
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 6550
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 20300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 4560
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 50800
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 11400
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.44
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Backing Shoulder Diameter (db) mm - 65
Backing Shoulder Diameter (db) inch - 2.56
Maximum Housing Fillet Radius (r) mm - 0.3
Maximum Housing Fillet Radius (r) inch - 0.01
Backing Shoulder Diameter (Da) mm - 86.5
Backing Shoulder Diameter (Da) inch - 3.41
Weight of the Bearing without Snap Ring (kg) - 1.2
Weight of the Bearing without Snap Ring (lbs) - 2.66
Inner Spacer - JXH5506A
Outer Spacer - JYH9006TSR
Snap Ring - K527327R
Inner Part Number - X32011X
Outer Part Number - Y32011X
SR - SET-RIGHT Assembly

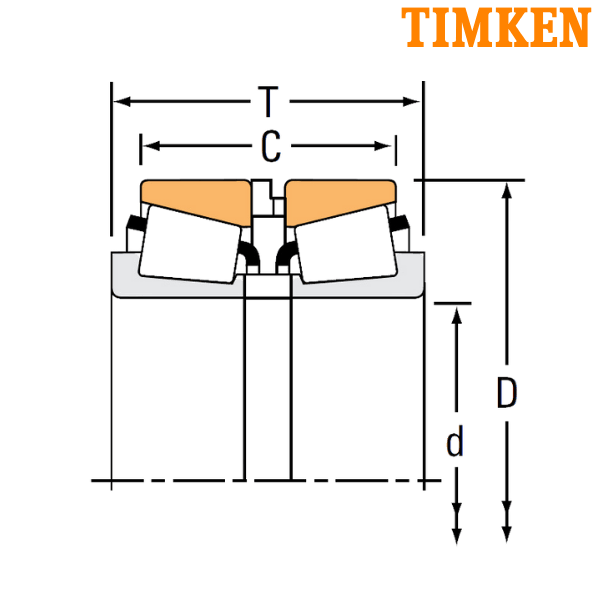

** Images are for representation purposes only
