Description
Brand - TIMKEN
Item Number - X32006X/Y32006X (JY5508-S) TIMKEN
Also Known As - X32006X - Y32006X (JY5508-S)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 30
Bore Diameter (d) inch - 1.1811
Outer Diameter (D) mm - 55
Outer Diameter (D) inch - 2.1654
Width (T) mm - 34
Width (T) inch - 1.3386
Width (B) mm - 34
Width (B) inch - 1.3386
Dynamic Radial Rating (C1) N - 80900
Dynamic Radial Rating (C1) lbf - 18200
Factor (e) - 0.43
Factor (Y1) - 1.57
Factor (Y2) - 2.34
Dynamic Radial Rating (90 million revolutions) (C90) N - 12000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 2710
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 8870
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 1990
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 21000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 4710
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.36
Maximum Shaft Fillet Radius (R) mm - 0.3
Maximum Shaft Fillet Radius (R) inch - 0.01
Backing Shoulder Diameter (db) mm - 36
Backing Shoulder Diameter (db) inch - 1.42
Maximum Housing Fillet Radius (r) mm - 1
Maximum Housing Fillet Radius (r) inch - 0.04
Cup Frontface Backing Diameter (Da) mm - 49
Cup Frontface Backing Diameter (Da) inch - 1.93
Weight (kg) - 0.37
Weight (lbs) - 0.79
Outer Spacer - JY5508-S
Inner Part Number - X32006X
Outer Part Number - Y32006X
2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

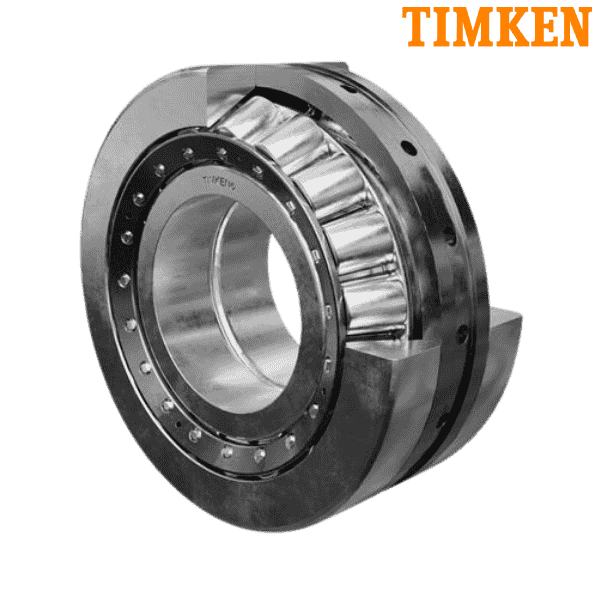

** Images are for representation purposes only
