X30220M/Y30220M (JY18016-Q) TIMKEN

Brand - TIMKEN
Item Number - X30220M/Y30220M (JY18016-Q) TIMKEN
Also Known As - X30220M - Y30220M (JY18016-Q)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 100
Bore Diameter (d) inch - 3.937
Outer Diameter (D) mm - 180
Outer Diameter (D) inch - 7.0866
Width (T) mm - 74
Width (T) inch - 2.9134
Width (B) mm - 68
Width (B) inch - 2.6772
Dynamic Radial Rating (C1) N - 524000
Dynamic Radial Rating (C1) lbf - 118000
Factor (e) - 0.42
Factor (Y1) - 1.61
Factor (Y2) - 2.39
Dynamic Radial Rating (90 million revolutions) (C90) N - 78000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 17500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 56100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 12600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 136000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 30500
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.39
Maximum Shaft Fillet Radius (R) mm - 1
Maximum Shaft Fillet Radius (R) inch - 0.04
Backing Shoulder Diameter (db) mm - 115
Backing Shoulder Diameter (db) inch - 4.53
Maximum Housing Fillet Radius (r) mm - 2.5
Maximum Housing Fillet Radius (r) inch - 0.1
Cup Frontface Backing Diameter (Da) mm - 163
Cup Frontface Backing Diameter (Da) inch - 6.42
Weight (kg) - 7.87
Weight (lbs) - 17.35
Outer Spacer - JY18016-Q
Inner Part Number - X30220M
Outer Part Number - Y30220M

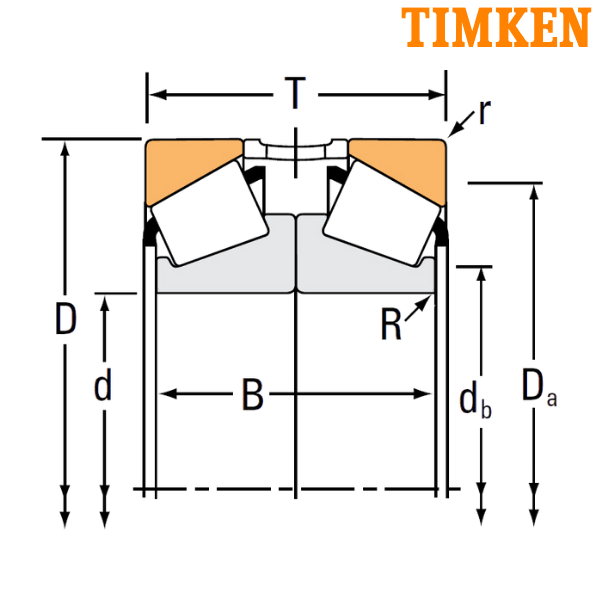

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

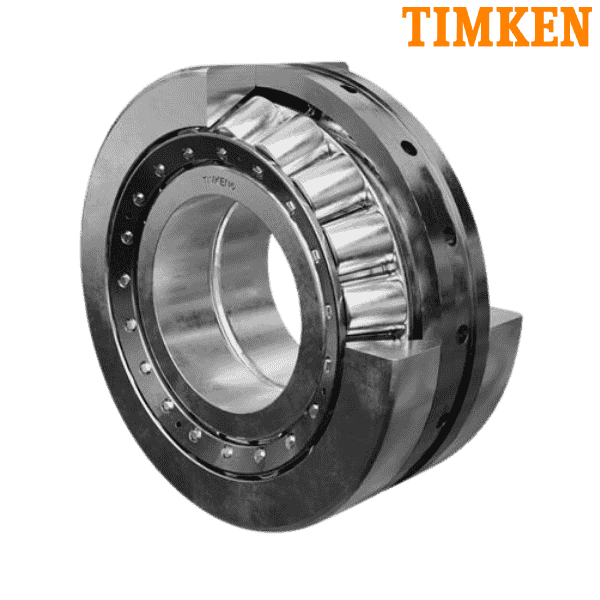

** Images are for representation purposes only
