Description
Brand - TIMKEN
Item Number - X30216M/Y30216M (K163675 / K163676) TIMKEN
Also Known As - X30216M - Y30216M (K163675 - K163676)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)
Bore Diameter (d) mm - 80
Bore Diameter (d) inch - 3.1496
Outer Diameter (D) mm - 140
Outer Diameter (D) inch - 5.5118
Width (T) mm - 64
Width (T) inch - 2.5196
Width (C) mm - 51.5
Width (C) inch - 2.0276
Dynamic Radial Rating (C1) N - 296000
Dynamic Radial Rating (C1) lbf - 66500
Factor (e) - 0.42
Factor (Y1) - 1.61
Factor (Y2) - 2.39
Dynamic Radial Rating (90 million revolutions) (C90) N - 44000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 9900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 31700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 7120
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 76700
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 17200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.39
Maximum Shaft Fillet Radius (R) mm - 2.5
Maximum Shaft Fillet Radius (R) inch - 0.1
Backing Shoulder Diameter (db) mm - 94
Backing Shoulder Diameter (db) inch - 3.7
Maximum Housing Fillet Radius (r) mm - 1
Maximum Housing Fillet Radius (r) inch - 0.04
Cup Frontface Backing Diameter (Da) mm - 133
Cup Frontface Backing Diameter (Da) inch - 5.24
Weight (kg) - 3.57
Weight (lbs) - 7.86
Inner Spacer - K163675
Outer Spacer - K163676
Inner Part Number - X30216M
Outer Part Number - Y30216M
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

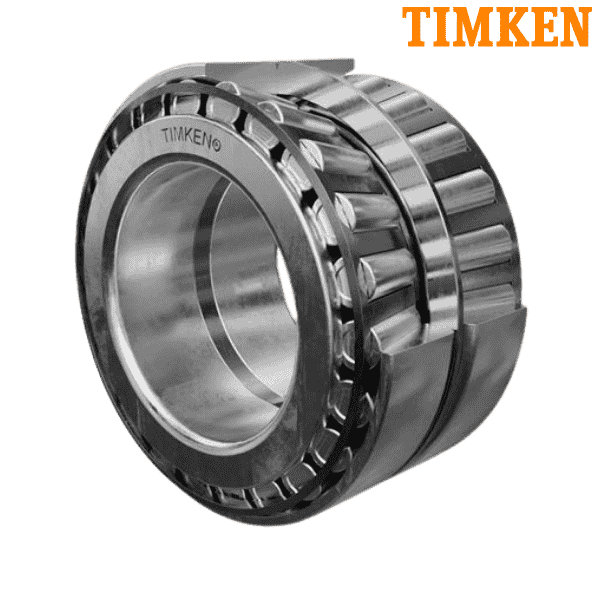

** Images are for representation purposes only
