Description
Brand - FAG
Item Number - WS22224-E1-XL-K-2RSR FAG
Category - Sealed Spherical Roller Bearing
Weight (m) kg - 11.3

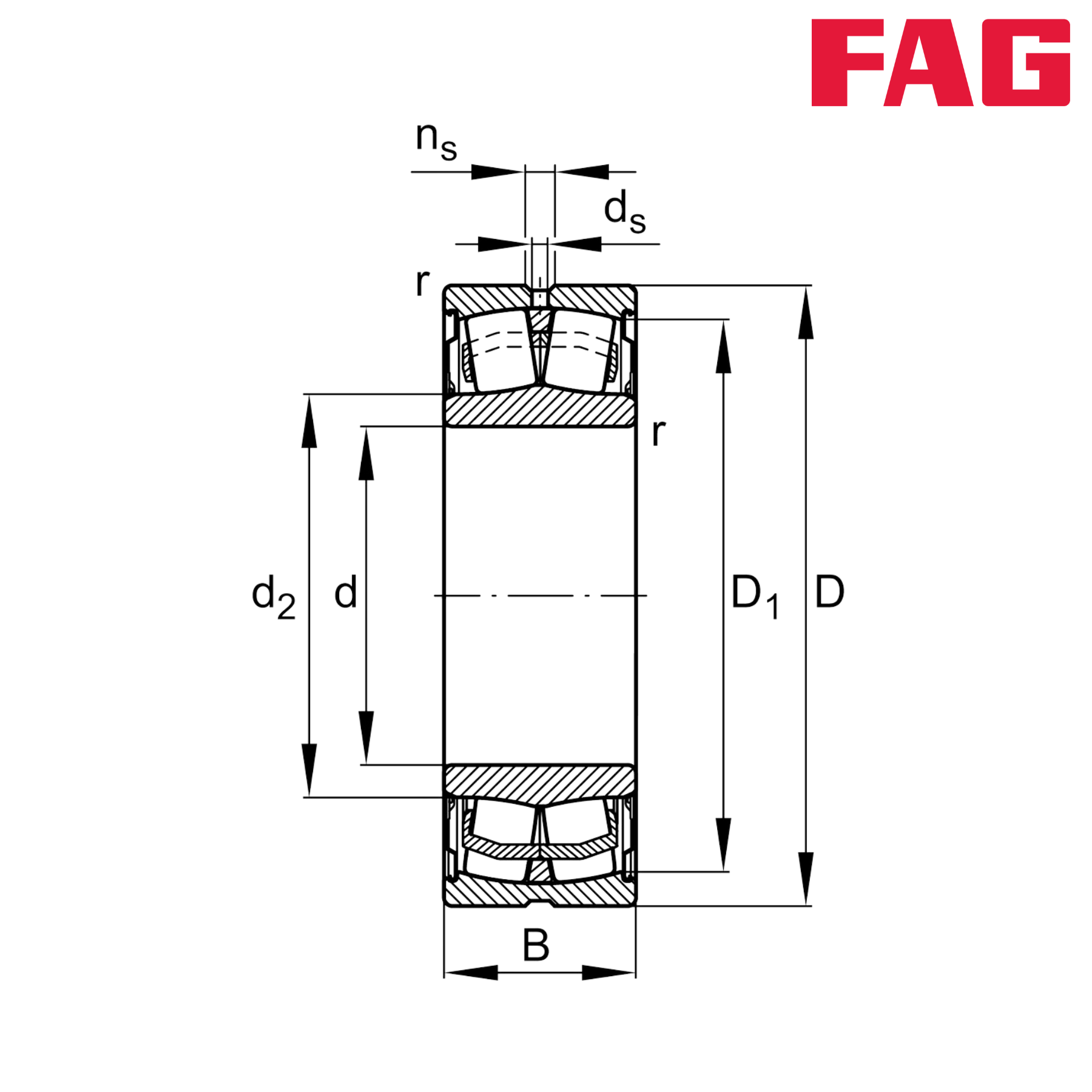

Inner Diameter (d) mm - 120
Outer Diameter (D) mm - 215
Width (B) mm - 69
Minimum Chamfer Dimension (r) mm - 2.1
Outer Ring Bore Diameter (D1) mm - 203.4
Inner Ring Raceway Diameter (d2) mm - 136.8
Lubrication Hole Diameter (ds) mm - 6.3
Lubrication Groove Width (ns) mm - 12.2
Minimum Abutment Diameter of Shaft Shoulder (da) mm - 132
Maximum Housing Connection Diameter (Da) mm - 203.4
Maximum Undercut Radius (ra) mm - 2.1
Basic dynamic Radial Load Rating (Cr) N - 640000
Basic Static Radial Load Rating (C0r) N - 740000
Calculation Factor (e) - 0.25
Calculation Factor (Y1) - 2.71
Calculation Factor (Y2) - 4.04
Calculation Factor (Y0) - 2.65
Radial Fatigue Load Limit (Cur) N - 73000
Limiting Speed (nG) 1/min - 920
Adapter Sleeve - H2224-T-WS
Withdrawal Sleeve - AH2224-WS
Suffixes:
E1 - Without Central Rib on Inner Ring
XL - X-Life
K - Tapered Bore (Taper 1:12)
2RSR - Steel-Reinforced Lip Seal on Both Sides Made From Nitrile Rubber (NBR), Grease Filling Level 25% to 40%, Filled with High-Pressure Grease

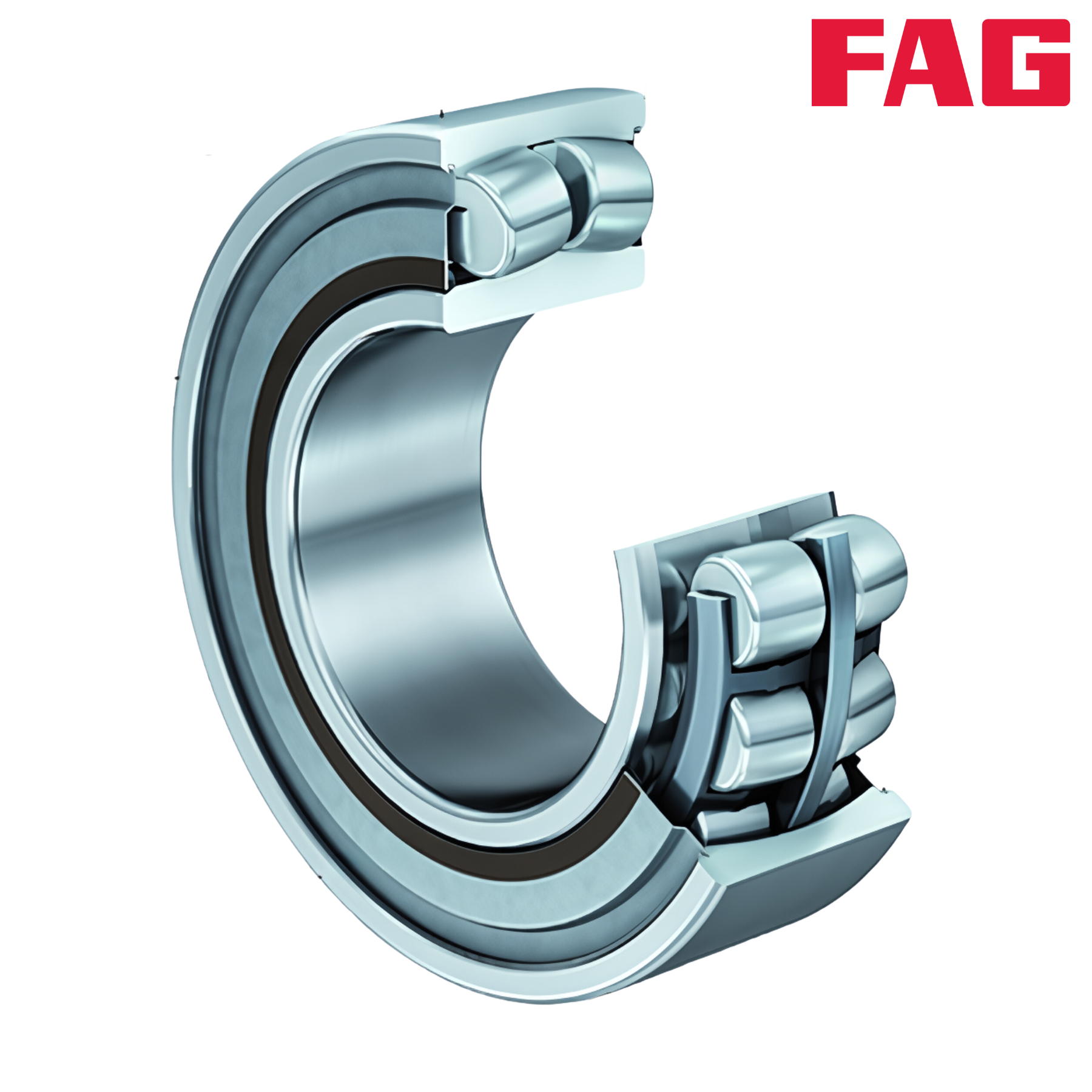

** Images are for representation purposes only
