WS22208-E1-XL-K-2RSR FAG


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item Number - WS22208-E1-XL-K-2RSR FAG
Category - Sealed Spherical Roller Bearing
Weight (m) kg - 0.7
Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 80
Width (B) mm - 28
Minimum Chamfer Dimension (r) mm - 1.1
Outer Ring Bore Diameter (D1) mm - 72.6
Inner Ring Raceway Diameter (d2) mm - 45.9
Lubrication Hole Diameter (ds) mm - 3.2
Lubrication Groove Width (ns) mm - 4.8

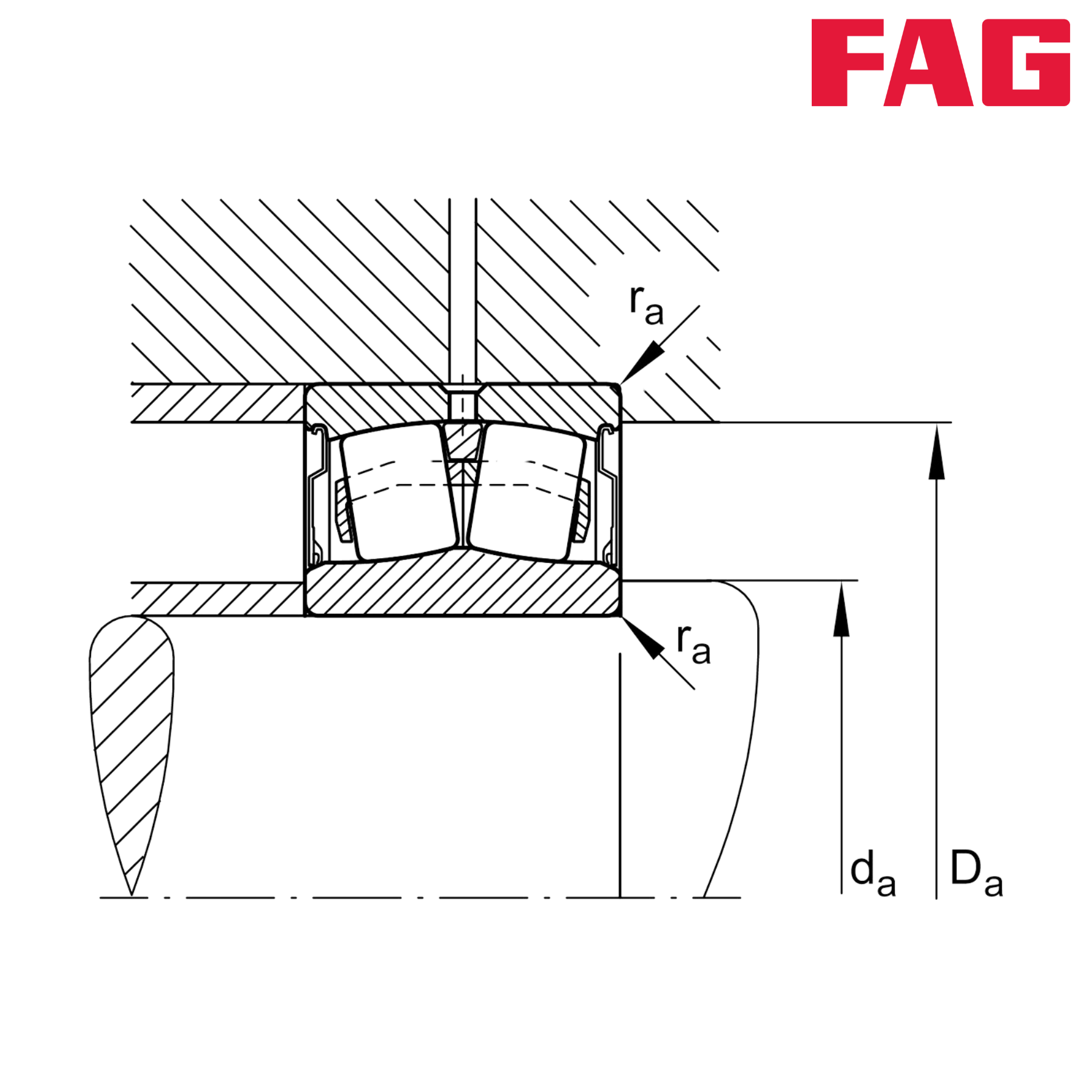

Minimum Abutment Diameter of Shaft Shoulder (da) mm - 45.9
Maximum Housing Connection Diameter (Da) mm - 73
Maximum Undercut Radius (ra) mm - 1
Basic dynamic Radial Load Rating (Cr) N - 101000
Basic Static Radial Load Rating (C0r) N - 91000
Calculation Factor (e) - 0.27
Calculation Factor (Y1) - 2.49
Calculation Factor (Y2) - 3.71
Calculation Factor (Y0) - 2.43
Radial Fatigue Load Limit (Cur) N - 12100
Limiting Speed (nG) 1/min - 2600
Adapter Sleeve - H2208-T-WS
Withdrawal Sleeve - AH2208-WS

Suffixes:
E1 - Without Central Rib on Inner Ring
XL - X-Life
K - Tapered Bore (Taper 1:12)
2RSR - Steel-Reinforced Lip Seal on Both Sides Made From Nitrile Rubber (NBR), Grease Filling Level 25% to 40%, Filled with High-Pressure Grease
