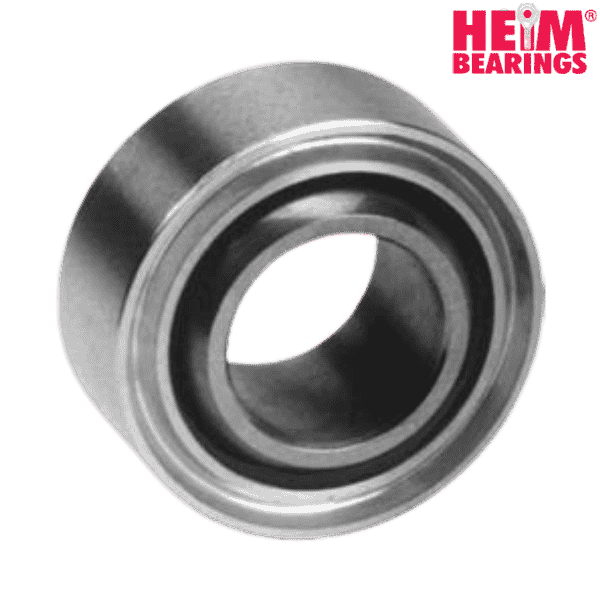

WEG9 RBC HEIM

Brand - RBC HEIM
Item Number - WEG9 RBC HEIM
Category - Grooved Spherical Bearing (Military Series)
MS14103 Dash No. - 9

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.5625 (+.0000 to - .0005) inch
Outside Diameter (D) - 1.125 (+.0000 to - .0005) inch
Ball Width (W) - 0.687 (+.000 to - .002) inch
Housing Width (H) - 0.536 (+.005 to - .005) inch
N - 0.035 (+.000 to - .010) inch
Other Dimension (G) - 1.025 (+.000 to - .008) inch
Other Dimension (C) - 0.025 (+.005 to - .005) inch
Other Dimension (S) - 0.04 inch
Ball Diameter (E) - 1 inch
Ball Flat Diameter (O) - 0.721 inch
Q - 10°
Static Radial Load - 26600 lbf
Static Axial Load - 5370 lbf
Oscillating Load - 18100 lbf
No Load Rotational Breakaway Torque - 0.25-8 in-lbs
Approximate Weight - 0.135 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.0612 kg

Other salient points to be noted :
• Outer Member = 17-4PH Stainless steel heat treated.
• Ball = 440C Stainless steel heat treated.
• Liner = Self-lubricating “E” UNIFLON® per SAE-AS81820 (formerly MIL-B-81820).

♦ ♦ Images are for representation purposes only
