WE16 RBC HEIM

Brand - RBC HEIM
Item Number - WE16 RBC HEIM
Category - Plain Spherical Bearing (Military Series)
MS14102 Dash No. - 16

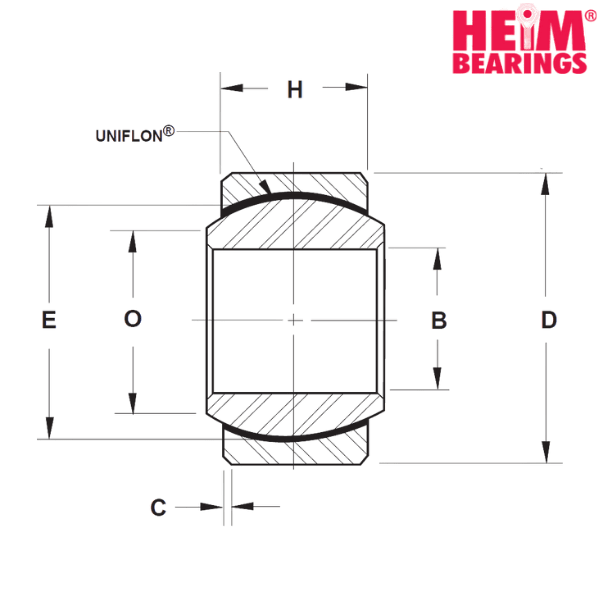

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 1 (+.0000 to - .0005) inch
Outside Diameter (D) - 2.125 (+.0000 to - .0005) inch
Ball Width (W) - 1.375 (+.000 to - .002) inch
Housing Width (H) - 1.005 (+.005 to - .005) inch
N - 0.055 (+.000 to - .010) inch
Other Dimension (G) - 2.001 (+.000 to - .008) inch
Other Dimension (C) - 0.035 (+.005 to - .005) inch
Other Dimension (S) - 0.045 inch
Ball Diameter (E) - 1.875 inch
Ball Flat Diameter (O) - 1.269 inch
Q - 12°
Static Radial Load - 104000 lbf
Static Axial Load - 19300 lbf
Oscillating Load - 56520 lbf
No Load Rotational Breakaway Torque - 0.25-12 in-lbs
Approximate Weight - 0.97 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.4399 kg

Other salient points to be noted :
• Outer Member = 17-4PH Stainless steel heat treated.
• Ball = 440C Stainless steel heat treated.
• Liner = Self-lubricating “E” UNIFLON® per SAE-AS81820 (formerly MIL-B-81820).

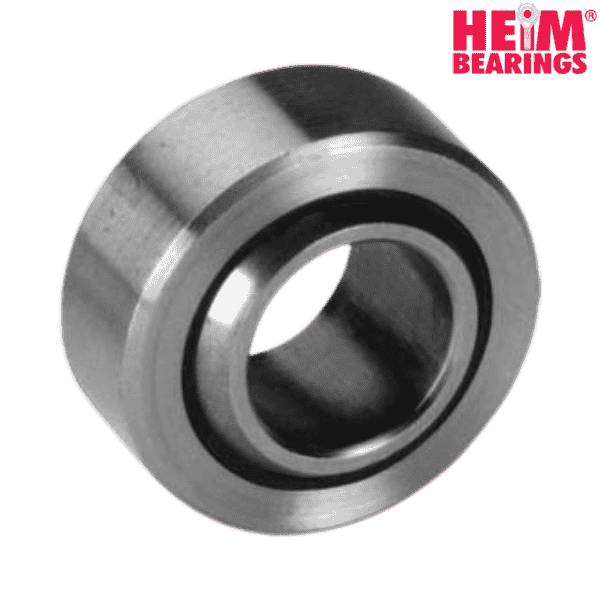

♦ ♦ Images are for representation purposes only
