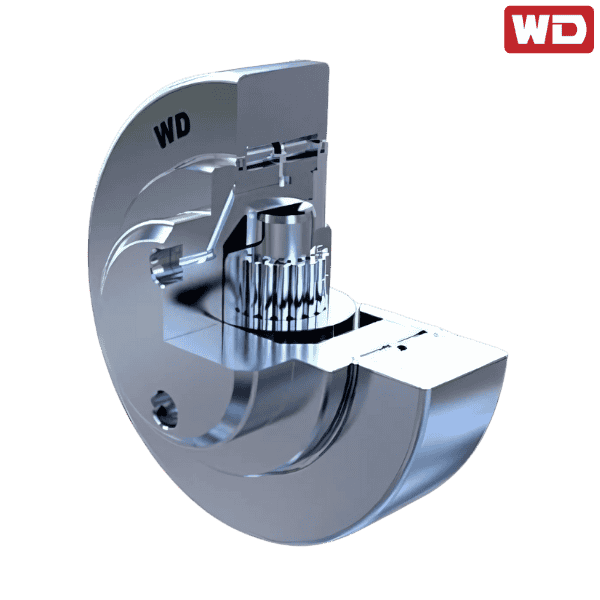

WD275-390 WD

Brand - WD
Item Number - WD275-390 WD
Category - Adjustable Heavy Duty Combined Roller Bearing

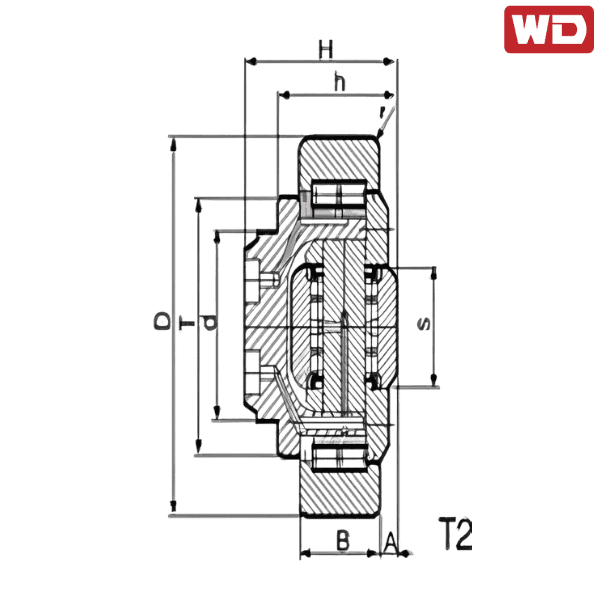

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 170 mm
Dimension (T) - 242 mm
Outside Diameter - 390 mm
Dimension (H) - 200 mm
Dimension (h) - 150 mm
Overall Bearing Width - 118 mm
Dimension (A) - 11 mm
Dimension (S) - 100 mm
Dimension (r) - 8 mm
Type - T2
Basic Load Rating (C) - 1076 kN
Basic Load Rating (Co) - 2535 kN
Dynamic Basic Load Rating (Ca) - 227 kN
Static Basic Load Rating (Coa) - 392 kN

♦ ♦ Images are for representation purposes only
