WD274-260 WD

Brand - WD
Item Number - WD274-260 WD
Category - Adjustable Heavy Duty Combined Roller Bearing

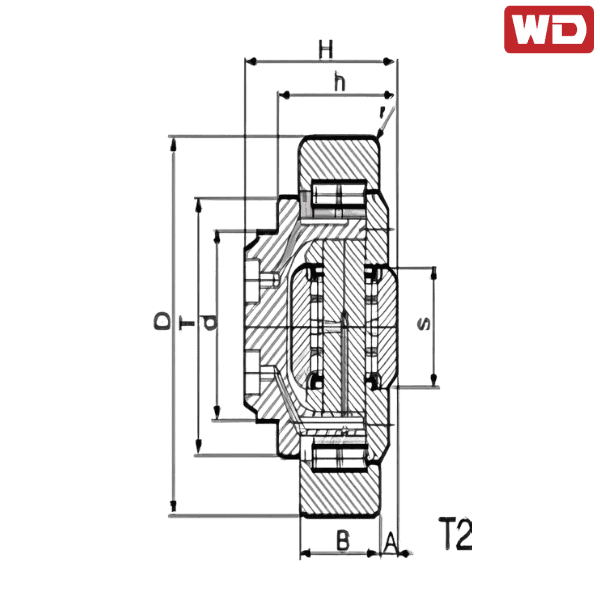

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 150 mm
Dimension (T) - 187 mm
Outside Diameter - 260 mm
Dimension (H) - 135 mm
Dimension (h) - 110 mm
Overall Bearing Width - 80 mm
Dimension (A) - 10 mm
Dimension (S) - 80 mm
Dimension (r) - 5 mm
Type - T2
Basic Load Rating (C) - 566 kN
Basic Load Rating (Co) - 1300 kN
Dynamic Basic Load Rating (Ca) - 167 kN
Static Basic Load Rating (Coa) - 279 kN

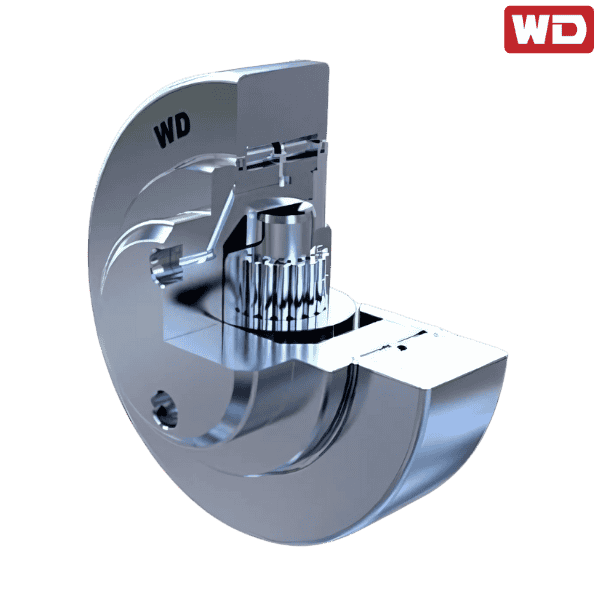

♦ ♦ Images are for representation purposes only
