WD092 WD

Brand - WD
Item Number - WD092 WD
Category - Adjustable Heavy Duty Combined Roller Bearing

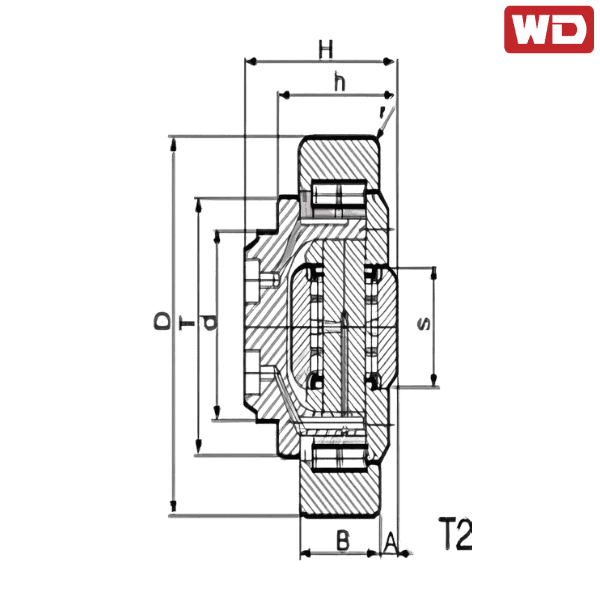

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 120 mm
Dimension (T) - 168 mm
Outside Diameter - 250 mm
Dimension (H) - 102 to 105 mm
Dimension (h) - 77 to 80 mm
Overall Bearing Width - 60 mm
Dimension (A) - 7 to 10 mm
Dimension (S) - 75 mm
Dimension (r) - 5 mm
Type - T1
Reference Code in Italy (A) - 4.0092
Reference Code in Italy (B) - MR.014A
Basic Load Rating (C) - 369 kN
Basic Load Rating (Co) - 748 kN
Dynamic Basic Load Rating (Ca) - 138 kN
Static Basic Load Rating (Coa) - 257 kN

♦ ♦ Images are for representation purposes only
