WD091 WD

Brand - WD
Item Number - WD091 WD
Category - Adjustable Heavy Duty Combined Roller Bearing

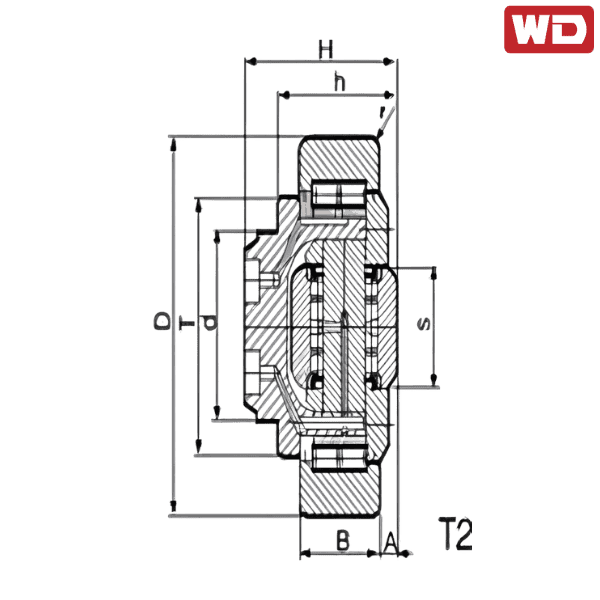

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 110 mm
Dimension (T) - 146 mm
Outside Diameter - 220 mm
Dimension (H) - 94.5 to 97.5 mm
Dimension (h) - 74.5 to 77.5 mm
Overall Bearing Width - 58 mm
Dimension (A) - 6.5 to 9.5 mm
Dimension (S) - 75 mm
Dimension (r) - 5 mm
Type - T1
Reference Code in Italy (A) - 4.0091
Reference Code in Italy (B) - MR.013A
Basic Load Rating (C) - 326 kN
Basic Load Rating (Co) - 681 kN
Dynamic Basic Load Rating (Ca) - 138 kN
Static Basic Load Rating (Coa) - 257 kN

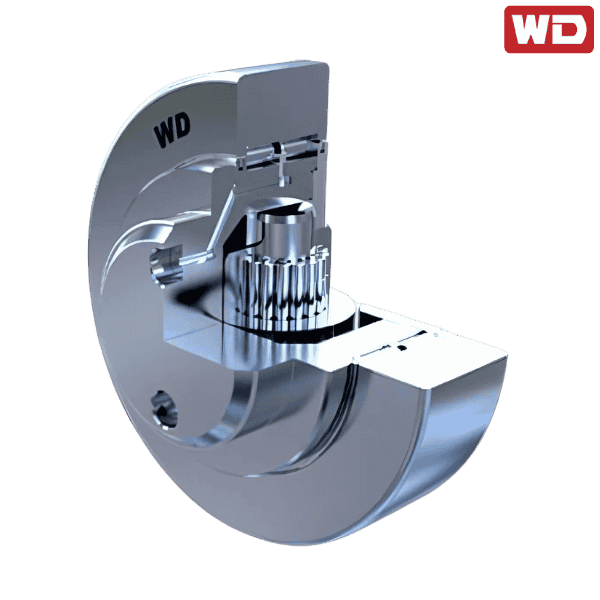

♦ ♦ Images are for representation purposes only
