WD087-185 WD

Brand - WD
Item Number - WD087-185 WD
Category - Adjustable Heavy Duty Combined Roller Bearing

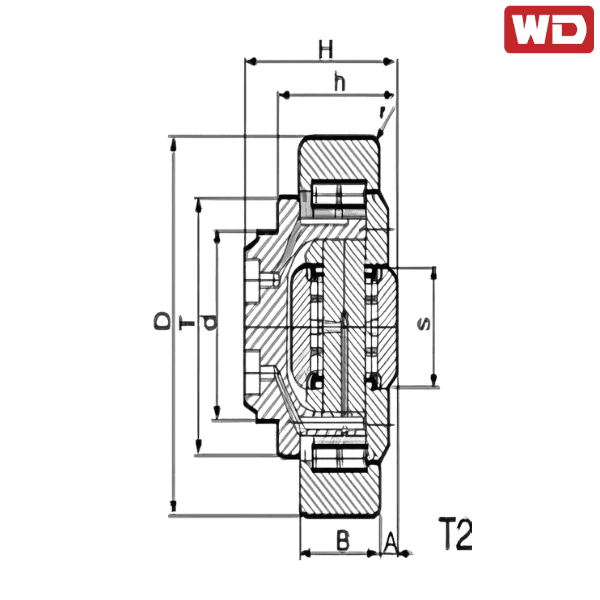

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 80 mm
Dimension (T) - 115 mm
Outside Diameter - 185 mm
Dimension (H) - 100 mm
Dimension (h) - 75 mm
Overall Bearing Width - 47 mm
Dimension (A) - 15 mm
Dimension (S) - 49.7 mm
Dimension (r) - 3 mm
Type - T2
Basic Load Rating (C) - 235 kN
Basic Load Rating (Co) - 440 kN
Dynamic Basic Load Rating (Ca) - 83 kN
Static Basic Load Rating (Coa) - 130 kN

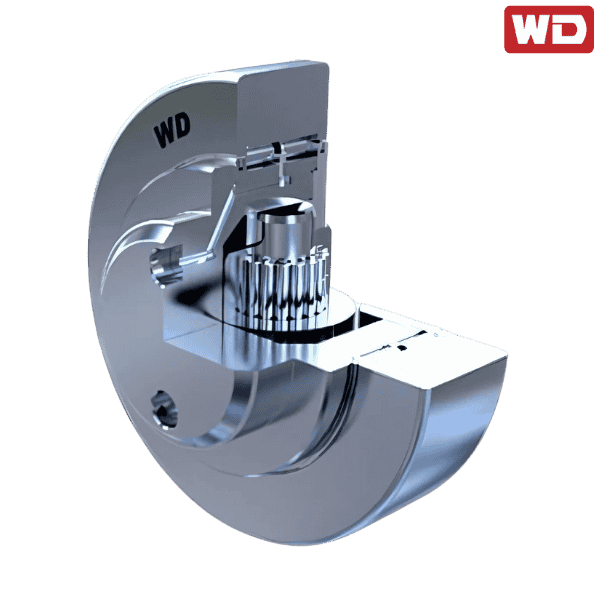

♦ ♦ Images are for representation purposes only
