WD084-340 WD

Brand - WD
Item Number - WD084-340 WD
Category - Adjustable Heavy Duty Combined Roller Bearing

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 140 mm
Dimension (T) - 240 mm
Outside Diameter - 340 mm
Dimension (H) - 150 mm
Dimension (h) - 120 mm
Overall Bearing Width - 89 mm
Dimension (A) - 10 mm
Dimension (S) - 100 mm
Dimension (r) - 8 mm
Type - T2
Basic Load Rating (C) - 785 kN
Basic Load Rating (Co) - 1690 kN
Dynamic Basic Load Rating (Ca) - 227 kN
Static Basic Load Rating (Coa) - 392 kN

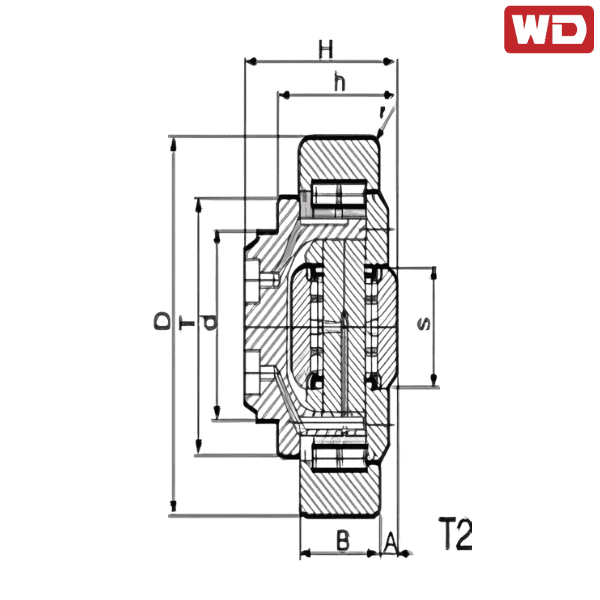

♦ ♦ Images are for representation purposes only
