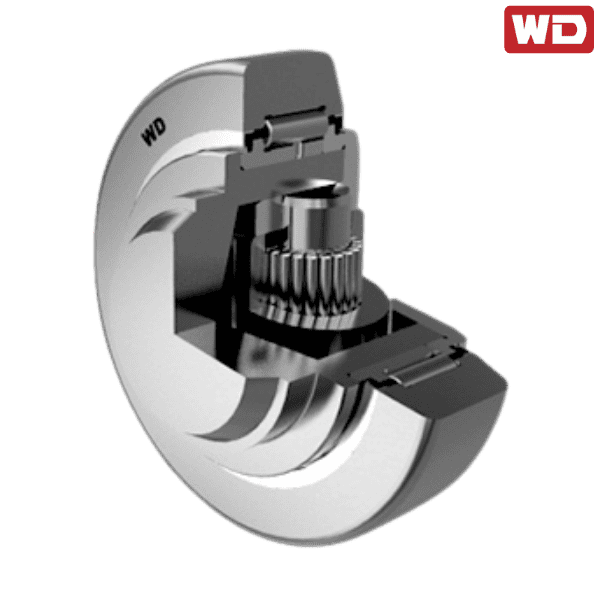

WD074-77.7 WD

Brand - WD
Item Number - WD074-77.7 WD
Category - Adjustable Combined Roller Bearing with Shims

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 40 mm
Dimension (T) - 54 mm
Outside Diameter - 77.7 mm
Dimension (H) - 50.5 mm
Dimension (h) - 39.5 mm
Overall Bearing Width - 23 mm
Dimension (A) - 7 mm
Dimension (S) - 21 mm
Dimension (r) - 4.5 mm
Optional Outer Diameter - 78.1 mm, 78.4 mm, 81.8 mm
Reference Code in Germany - 4.074
Reference Code in Italy - MR.148
Basic Load Rating (C) - 48 kN
Basic Load Rating (Co) - 56.8 kN
Dynamic Basic Load Rating (Ca) - 14 kN
Static Basic Load Rating (Coa) - 14 kN

♦ ♦ Images are for representation purposes only
