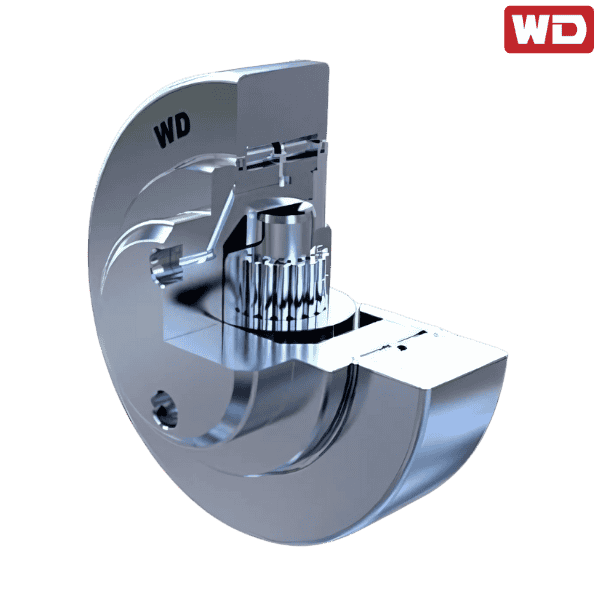

WD069-170 WD

Brand - WD
Item Number - WD069-170 WD
Category - Adjustable Heavy Duty Combined Roller Bearing

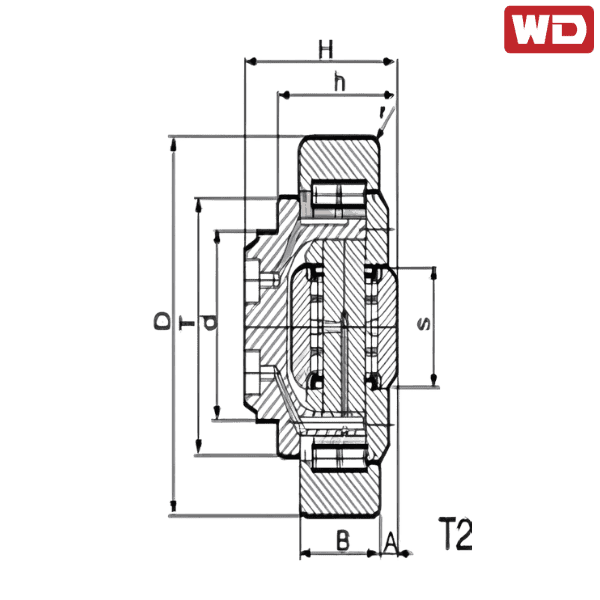

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 70 mm
Dimension (T) - 98 mm
Outside Diameter - 170 mm
Dimension (H) - 109.7 mm
Dimension (h) - 84.7 mm
Overall Bearing Width - 51 mm
Dimension (A) - 11.2 mm
Dimension (S) - 49.7 mm
Dimension (r) - 4 mm
Type - T2
Basic Load Rating (C) - 195 kN
Basic Load Rating (Co) - 361 kN
Dynamic Basic Load Rating (Ca) - 83 kN
Static Basic Load Rating (Coa) - 129 kN

♦ ♦ Images are for representation purposes only
