WD063/149-2PS WD

Brand - WD
Item Number - WD063/149-2PS WD
Category - Standard Combined Roller Bearing

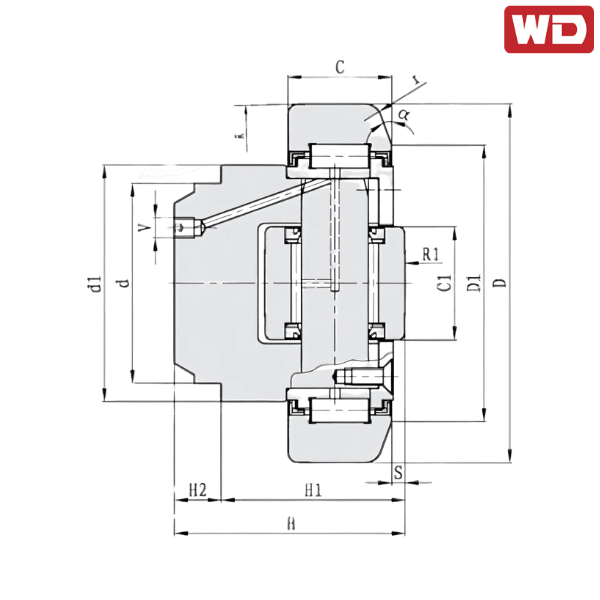

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 60 mm
Outside Diameter - 149 mm
Dimension (C) - 45 mm
Dimension (H)   - 77.5 mm
Dimension (H1) - 58.5 mm
Dimension (H2) - 19 mm
Outside Diameter - 121 mm
Dimension (C1) - 50 mm
Dimension (d1) - 103 mm
Dimension (S) - 5 mm
Angle - 15 º
Dimension (r) - 5 mm
Dimension (R) - 1500 mm
Dimension (R1) - 1500 mm
Dimension (V) - M6X1
Optional Outer Diameter - 149.8 mm, 153.8 mm
Basic Load Rating (C) - 151 kN
Basic Load Rating (Co) - 192 kN
Dynamic Basic Load Rating (Ca) - 68 kN
Static Basic Load Rating (Coa) - 71 kN
Reference Code in Germany - 4.063
Reference Code in Italy (A) - 4.0063-149
Reference Code in Italy (B) - MR.010

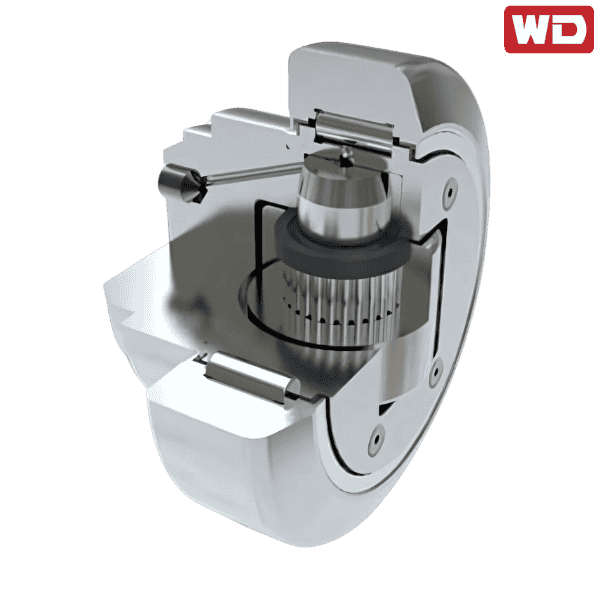

♦ ♦ Images are for representation purposes only
