WD062/123-ZRS WD

Brand - WD
Item Number - WD062/123-ZRS WD
Category - Standard Combined Roller Bearing

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 60 mm
Outside Diameter - 123 mm
Dimension (C) - 37 mm
Dimension (H)   - 72.3 mm
Dimension (H1) - 56 mm
Dimension (H2) - 16.3 mm
Outside Diameter - 92.5 mm
Dimension (C1) - 40 mm
Dimension (d1) - 80 mm
Dimension (S) - 5 mm
Angle - 20 º
Dimension (r) - 5 mm
Dimension (R) - 1000 mm
Dimension (R1) - 700 mm
Dimension (V) - M6X1
Basic Load Rating (C) - 110 kN
Basic Load Rating (Co) - 132 kN
Dynamic Basic Load Rating (Ca) - 43 kN
Static Basic Load Rating (Coa) - 50 kN
Reference Code in Germany - 4.062
Reference Code in Italy (A) - 4.0062-123
Reference Code in Italy (B) - MR.009

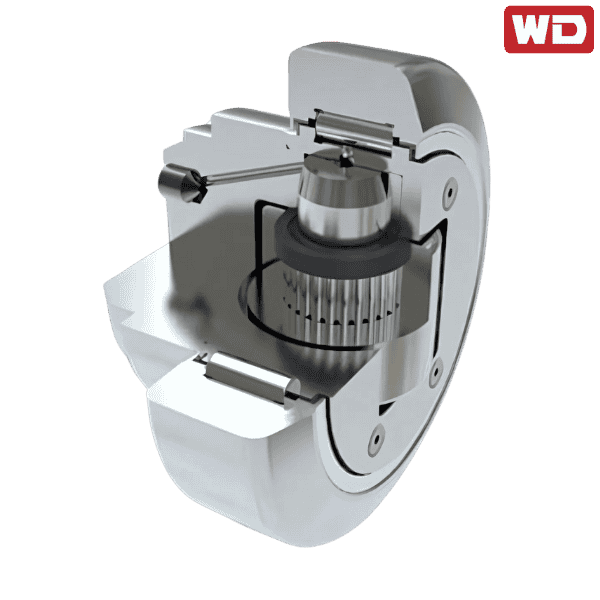

♦ ♦ Images are for representation purposes only
