WD059/101.2-2RS WD

Brand - WD
Item Number - WD059/101.2-2RS WD
Category - Standard Combined Roller Bearing

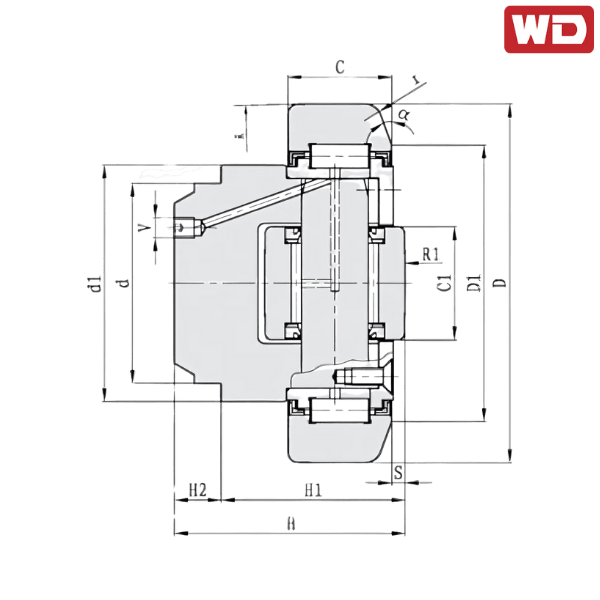

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 50 mm
Outside Diameter - 101.2 mm
Dimension (C) - 28 mm
Dimension (H)   - 46 mm
Dimension (H1) - 33 mm
Dimension (H2) - 13 mm
Outside Diameter - 82 mm
Dimension (C1) - 30 mm
Dimension (d1) - 67 mm
Dimension (S) - 3 mm
Angle - 20 º
Dimension (r) - 4 mm
Dimension (R) - 1000 mm
Dimension (R1) - 700 mm
Dimension (V) - M6X1
Optional Outer Diameter - 101.8 mm, 102.3 mm
Basic Load Rating (C) - 73 kN
Basic Load Rating (Co) - 82 kN
Dynamic Basic Load Rating (Ca) - 25 kN
Static Basic Load Rating (Coa) - 27 kN
Reference Code in Germany - 4.059
Reference Code in Italy (A) - 4.0059-101.2
Reference Code in Italy (B) - MR.006

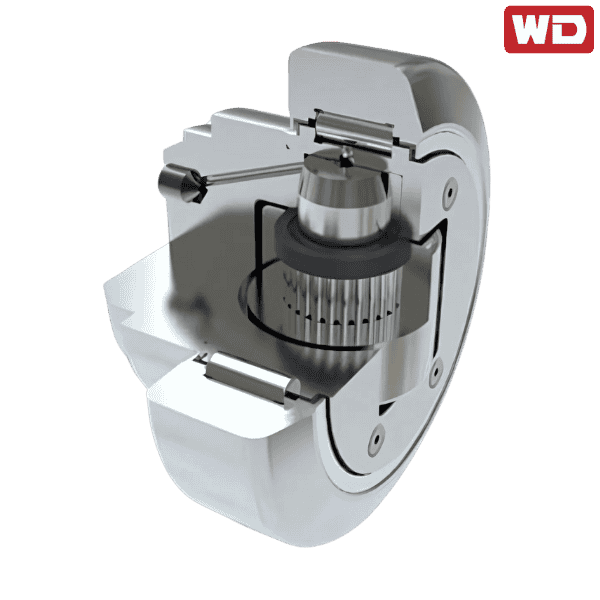

♦ ♦ Images are for representation purposes only
