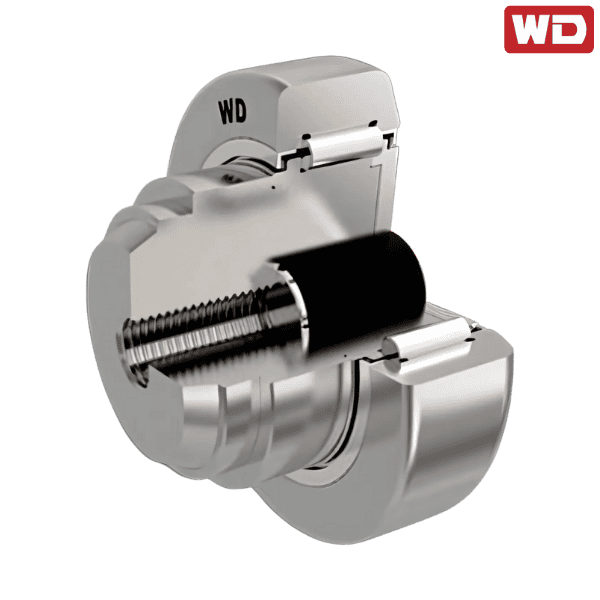

WD0567 WD

Brand - WD
Item Number - WD0567 WD
Category - Adjustable Combined Roller Bearings with Plastic Axial Roller

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 60 mm
Dimension (d1) - 80 mm
Outside Diameter - 123 mm
Dimension (C) - 37 mm
Dimension (H) - 72.3 mm
Dimension (h) - 56 mm
Outside Diameter - 92.5 mm
Dimension (D2) - 40 mm
Dimension (r) - 5 mm
Dimension (S) - 5 mm
Dimension (V) - M16
Reference Code in Italy - MR.967
Dynamic Load Rating (Cr) - 110 kN
Static Load Rating (Cor) - 132 kN

♦ ♦ Images are for representation purposes only
