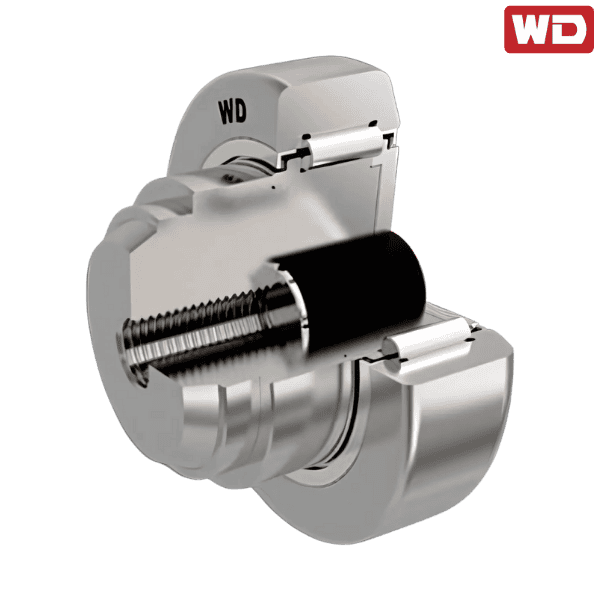

WD0566 WD

Brand - WD
Item Number - WD0566 WD
Category - Adjustable Combined Roller Bearings with Plastic Axial Roller

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 60 mm
Dimension (d1) - 69 mm
Outside Diameter - 107.7 mm
Dimension (C) - 31 mm
Dimension (H) - 69 mm
Dimension (h) - 55 mm
Outside Diameter - 82 mm
Dimension (D2) - 25 mm
Dimension (r) - 5 mm
Dimension (S) - 4 mm
Dimension (V) - M16
Reference Code in Italy - MR.966
Dynamic Load Rating (Cr) - 81 kN
Static Load Rating (Cor) - 95 kN

♦ ♦ Images are for representation purposes only
