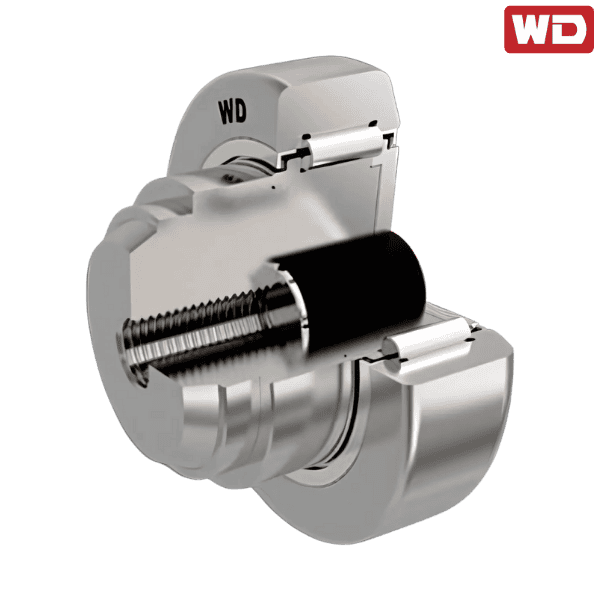

WD0565 WD

Brand - WD
Item Number - WD0565 WD
Category - Adjustable Combined Roller Bearings with Plastic Axial Roller

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 45 mm
Dimension (d1) - 59 mm
Outside Diameter - 88.9 mm
Dimension (C) - 30 mm
Dimension (H) - 57 mm
Dimension (h) - 44 mm
Outside Diameter - 68 mm
Dimension (D2) - 30 mm
Dimension (r) - 4 mm
Dimension (S) - 3.5 mm
Dimension (V) - M12
Reference Code in Italy - MR.964
Dynamic Load Rating (Cr) - 68 kN
Static Load Rating (Cor) - 72 kN

♦ ♦ Images are for representation purposes only
