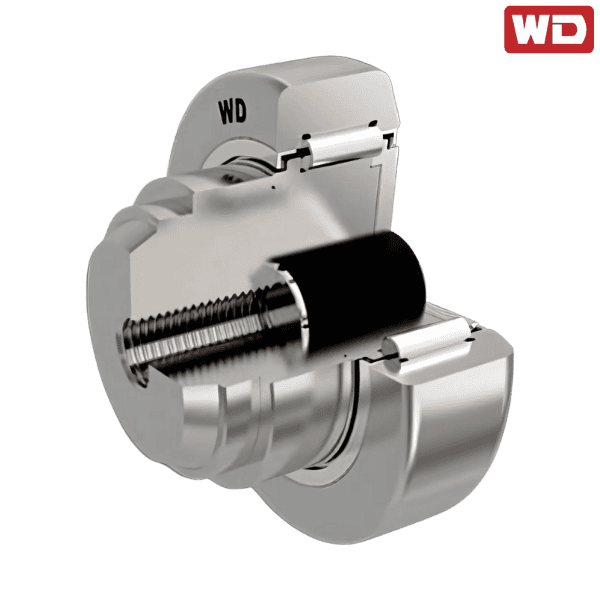

WD0564 WD

Brand - WD
Item Number - WD0564 WD
Category - Adjustable Combined Roller Bearings with Plastic Axial Roller

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 40 mm
Dimension (d1) - 53 mm
Outside Diameter - 77.7 mm
Dimension (C) - 23 mm
Dimension (H) - 48 mm
Dimension (h) - 36.5 mm
Outside Diameter - 61 mm
Dimension (D2) - 18 mm
Dimension (r) - 4 mm
Dimension (S) - 3 mm
Dimension (V) - M10
Reference Code in Italy - MR.963
Dynamic Load Rating (Cr) - 48 kN
Static Load Rating (Cor) - 56.8 kN

♦ ♦ Images are for representation purposes only
