WD0563 WD

Brand - WD
Item Number - WD0563 WD
Category - Adjustable Combined Roller Bearings with Plastic Axial Roller

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 35 mm
Dimension (d1) - 48 mm
Outside Diameter - 70.1 mm
Dimension (C) - 23 mm
Dimension (H) - 44 mm
Dimension (h) - 36 mm
Outside Diameter - 57 mm
Dimension (D2) - 18 mm
Dimension (r) - 4.5 mm
Dimension (S) - 2.5 mm
Dimension (V) - M10
Reference Code in Italy - MR.962
Dynamic Load Rating (Cr) - 45.5 kN
Static Load Rating (Cor) - 51 kN

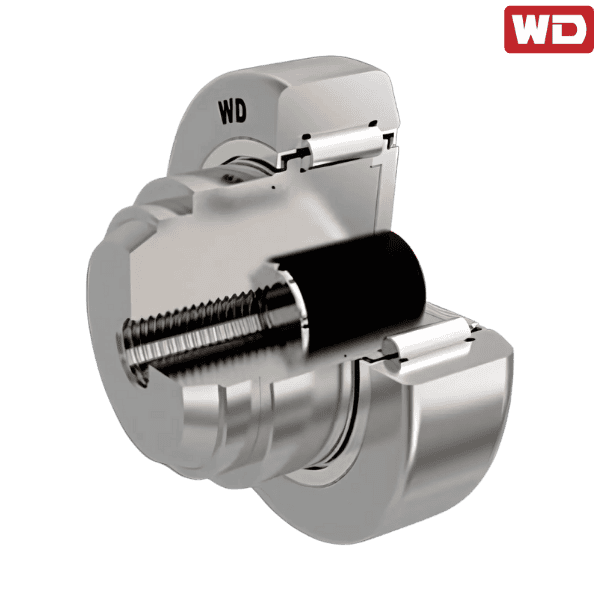

♦ ♦ Images are for representation purposes only
