WD0562 WD

Brand - WD
Item Number - WD0562 WD
Category - Adjustable Combined Roller Bearings with Plastic Axial Roller

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 30 mm
Dimension (d1) - 42 mm
Outside Diameter - 62 mm
Dimension (C) - 20 mm
Dimension (H) - 37.5 mm
Dimension (h) - 30.5 mm
Outside Diameter - 50 mm
Dimension (D2) - 18 mm
Dimension (r) - 3 mm
Dimension (S) - 2.5 mm
Dimension (V) - M10
Reference Code in Italy - MR.961
Dynamic Load Rating (Cr) - 31 kN
Static Load Rating (Cor) - 35.5 kN

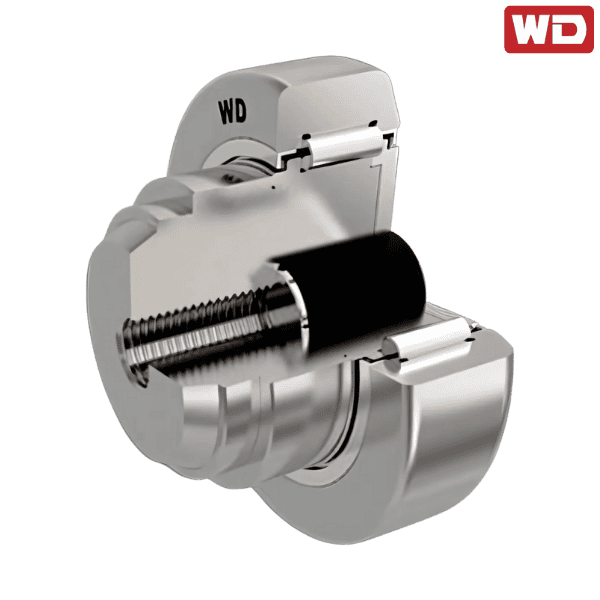

♦ ♦ Images are for representation purposes only
