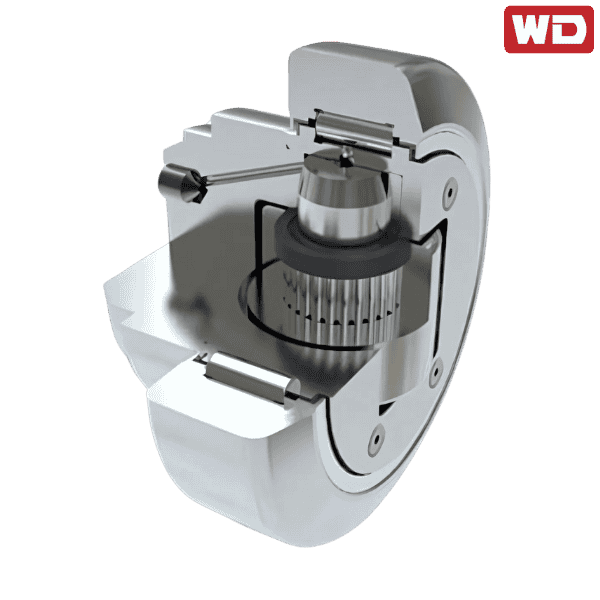

WD054/62.5-ZRS WD

Brand - WD
Item Number - WD054/62.5-ZRS WD
Category - Standard Combined Roller Bearing

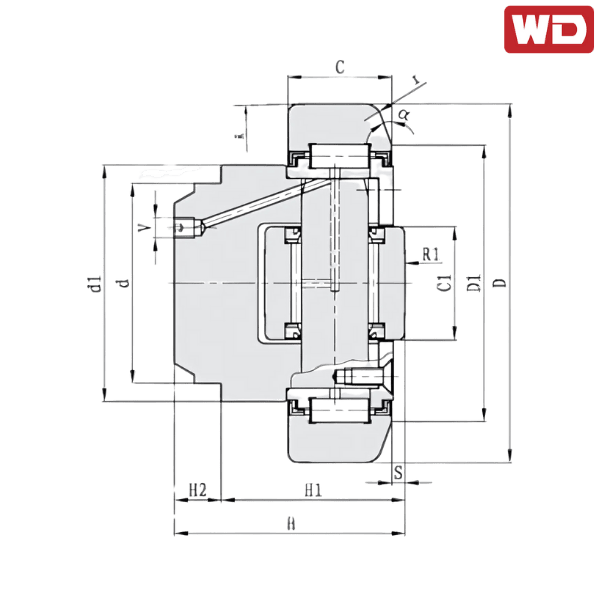

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 30 mm
Outside Diameter - 62.5 mm
Dimension (C) - 20 mm
Dimension (H)   - 37.5 mm
Dimension (H1) - 30.5 mm
Dimension (H2) - 7 mm
Outside Diameter - 50 mm
Dimension (C1) - 20 mm
Dimension (d1) - 42 mm
Dimension (S) - 2.5 mm
Angle - 20 º
Dimension (r) - 3 mm
Dimension (R) - 500 mm
Dimension (R1) - 500 mm
Dimension (V) - M6X1
Optional Outer Diameter - 62 mm, 64.8 mm
Basic Load Rating (C) - 31 kN
Basic Load Rating (Co) - 35.5 kN
Dynamic Basic Load Rating (Ca) - 11 kN
Static Basic Load Rating (Coa) - 11 kN
Reference Code in Germany - 4.054
Reference Code in Italy (A) - 4.0054-62.5
Reference Code in Italy (B) - MR.001
