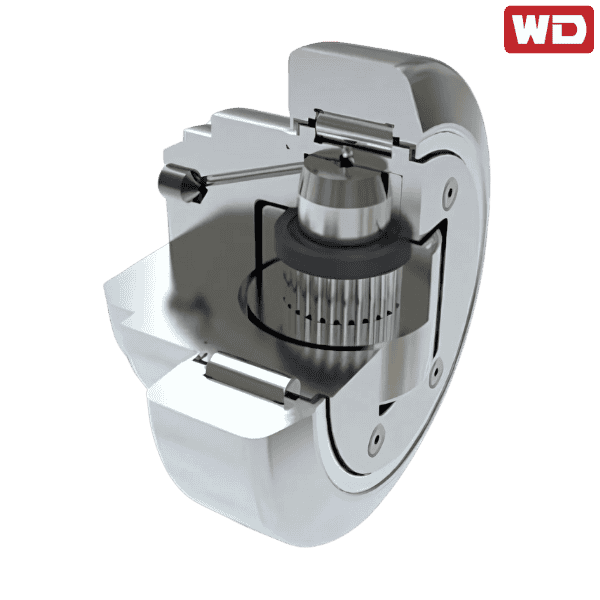

WD053/52.5-2RS WD

Brand - WD
Item Number - WD053/52.5-2RS WD
Category - Standard Combined Roller Bearing

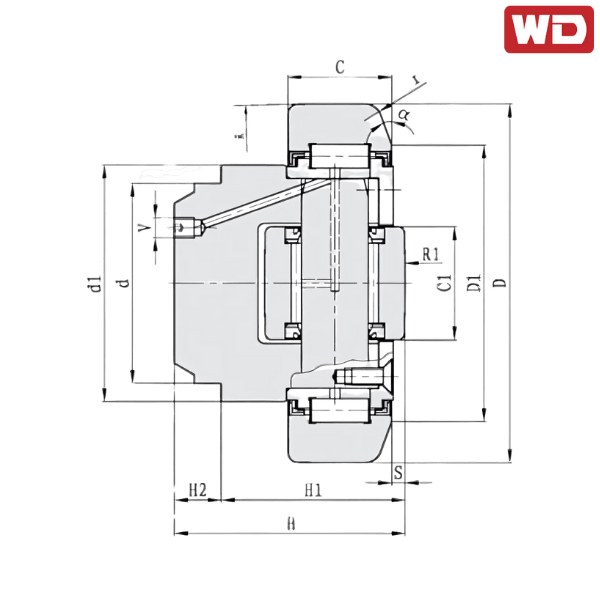

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 30 mm
Outside Diameter - 52.5 mm
Dimension (C) - 17 mm
Dimension (H)   - 33 mm
Dimension (H1) - 27 mm
Dimension (H2) - 6 mm
Dimension (C1) - 15 mm
Dimension (d1) - 40 mm
Dimension (S) - 2 mm
Dimension (r) - 2 mm
Dimension (R) - 500 mm
Dimension (R1) - 500 mm
Basic Load Rating (C) - 24 kN
Basic Load Rating (Co) - 32 kN
Dynamic Basic Load Rating (Ca) - 7 kN
Static Basic Load Rating (Coa) - 7 kN
Reference Code in Germany - 4.053
