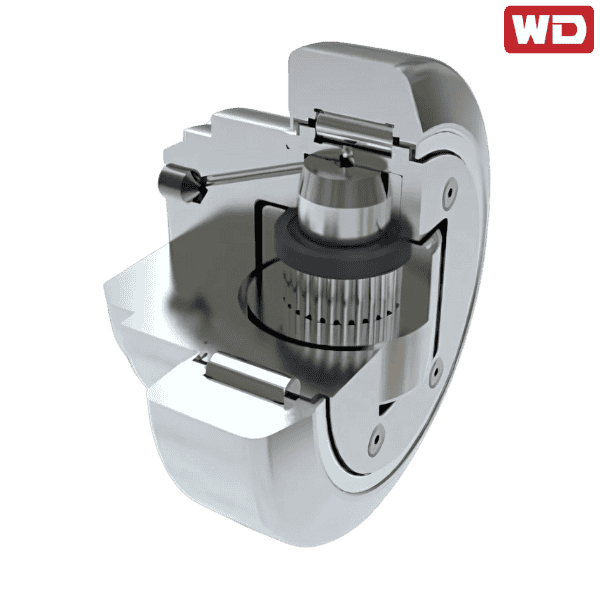

WD039/185-2PS WD

Brand - WD
Item Number - WD039/185-2PS WD
Category - Standard Combined Roller Bearing

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 80 mm
Outside Diameter - 185 mm
Dimension (C) - 55 mm
Dimension (H)   - 95 mm
Dimension (H1) - 71 mm
Dimension (H2) - 24 mm
Outside Diameter - 141 mm
Dimension (C1) - 63 mm
Dimension (d1) - 120 mm
Dimension (S) - 7 mm
Angle - 20 º
Dimension (r) - 7.5 mm
Dimension (R) - 1500 mm
Dimension (R1) - 1000 mm
Dimension (V) - 1/8GAS
Basic Load Rating (C) - 278 kN
Basic Load Rating (Co) - 518 kN
Dynamic Basic Load Rating (Ca) - 132 kN
Static Basic Load Rating (Coa) - 210 kN
Reference Code in Italy (A) - 4.0039-185
