WD038-260 WD

Brand - WD
Item Number - WD038-260 WD
Category - Adjustable Heavy Duty Combined Roller Bearing

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 130 mm
Dimension (T) - 184 mm
Outside Diameter - 260 mm
Dimension (H) - 120 mm
Dimension (h) - 95 mm
Overall Bearing Width - 60 mm
Dimension (A) - 18.5 mm
Dimension (S) - 80 mm
Dimension (r) - 5 mm
Type - T2
Basic Load Rating (C) - 475 kN
Basic Load Rating (Co) - 1000 kN
Dynamic Basic Load Rating (Ca) - 167 kN
Static Basic Load Rating (Coa) - 279 kN

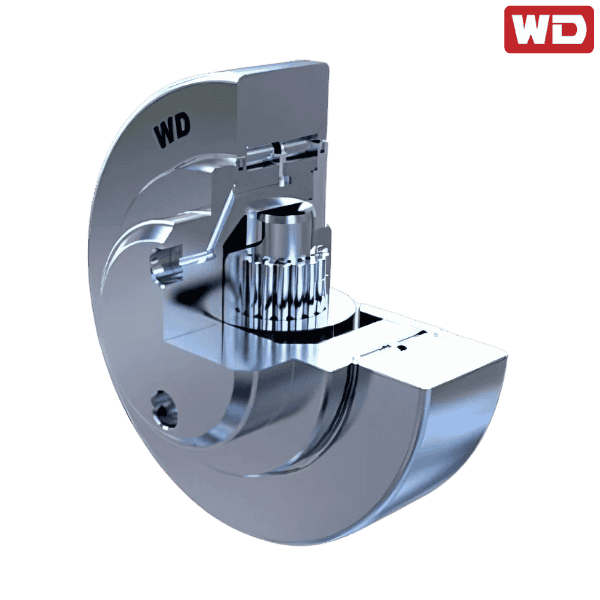

♦ ♦ Images are for representation purposes only
