WD019-220 WD

Brand - WD
Item Number - WD019-220 WD
Category - Adjustable Heavy Duty Combined Roller Bearing

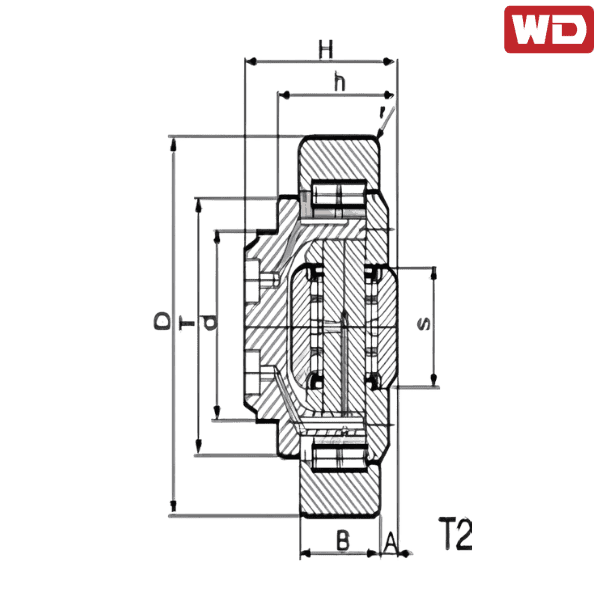

Principal Dimensions & Load Ratings (Metric):
Bore Diameter - 110 mm
Dimension (T) - 150 mm
Outside Diameter - 220 mm
Dimension (H) - 115 mm
Dimension (h) - 90 mm
Overall Bearing Width - 60 mm
Dimension (A) - 13.5 mm
Dimension (S) - 70 mm
Dimension (r) - 5 mm
Type - T2
Basic Load Rating (C) - 367 kN
Basic Load Rating (Co) - 719 kN
Dynamic Basic Load Rating (Ca) - 103 kN
Static Basic Load Rating (Coa) - 230 kN

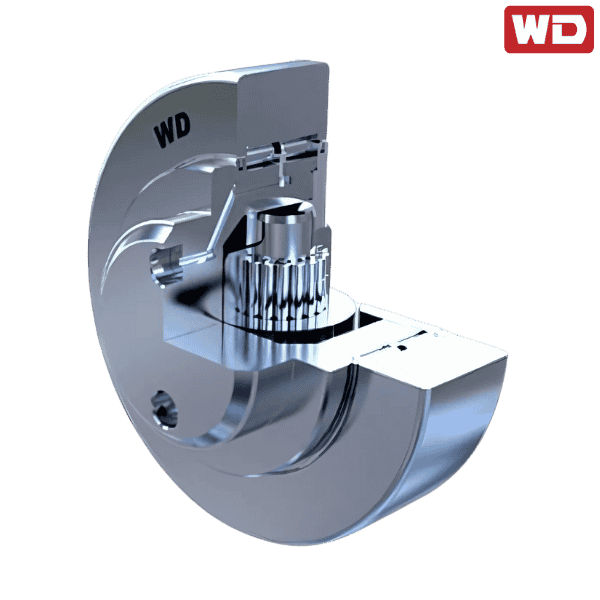

♦ ♦ Images are for representation purposes only
