VTRY 7 1/2 RBC

Brand - RBC
Item Number - VTRY 7 1/2 RBC
Category - Track Runner (V-Grooved Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

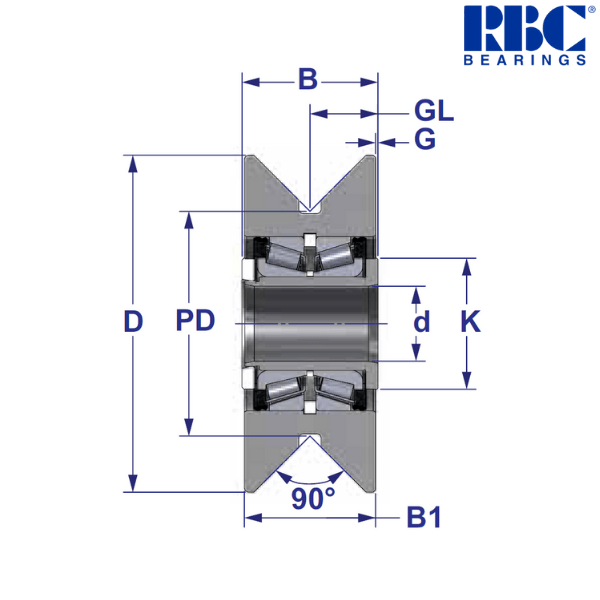

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 7.5 inch
Width (B1) - 3.25 inch
Bore Diameter (d) - 2.25 (+.0005 to -.0000) inch
Overall Width (B) - 3.375 (+.005 to -.010) inch
Groove Point Diameter (PD) - 6 inch
Groove Location (GL) - 1.687 inch
Shoulder Length (G) - 0.062 inch
Shoulder Diameter (K) - 3.5 inch
Dynamic Radial Load - 35840 lbs
Static Thrust Load - 26930 lbs
Static Radial Load - 52600 lbs
Equivalent Part Number in OSBORN - VLRY 7 - 1/2

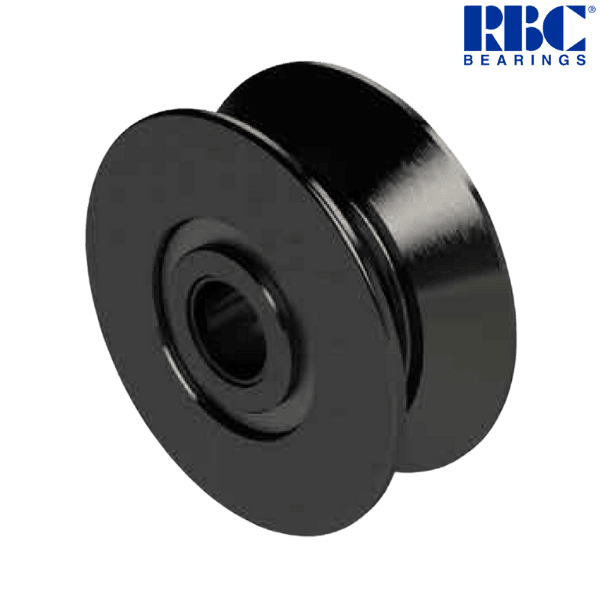

♦ ♦ Images are for representation purposes only
