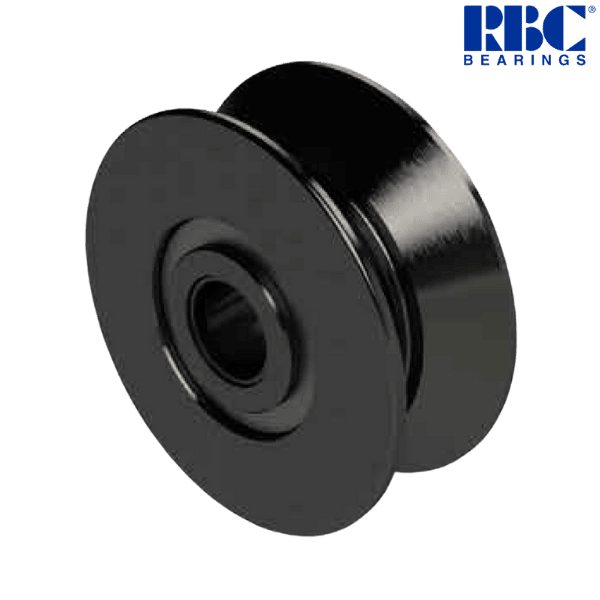

VTRY 6 1/2 RBC

Brand - RBC
Item Number - VTRY 6 1/2 RBC
Category - Track Runner (V-Grooved Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

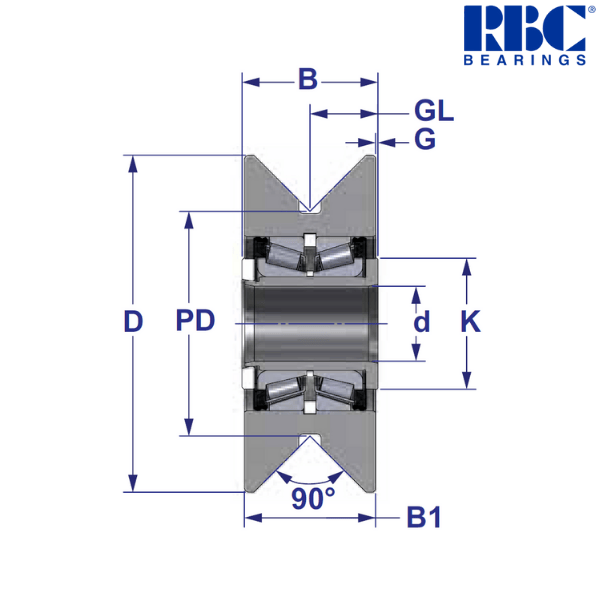

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 6.5 inch
Width (B1) - 2.75 inch
Bore Diameter (d) - 1.75 (+.0005 to -.0000) inch
Overall Width (B) - 2.875 (+.005 to -.010) inch
Groove Point Diameter (PD) - 5 inch
Groove Location (GL) - 1.437 inch
Shoulder Length (G) - 0.062 inch
Shoulder Diameter (K) - 3.5 inch
Dynamic Radial Load - 35840 lbs
Static Thrust Load - 23010 lbs
Static Radial Load - 44600 lbs
Equivalent Part Number in OSBORN - VLRY 6 - 1/2
Equivalent Part Number in McGill - VCYR 6 1/2

♦ ♦ Images are for representation purposes only
