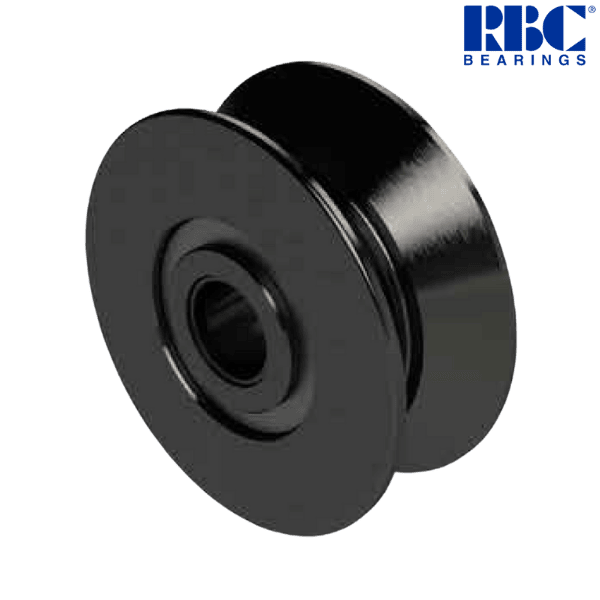

VTRY 5 RBC

Brand - RBC
Item Number - VTRY 5 RBC
Category - Track Runner (V-Grooved Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

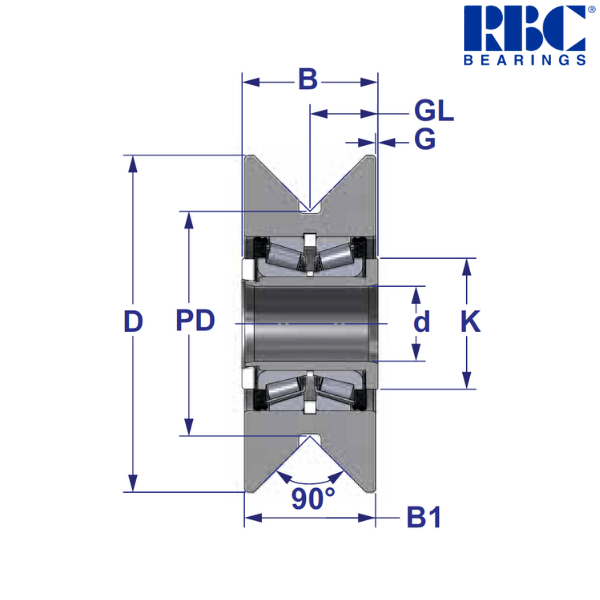

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 5 inch
Width (B1) - 2 inch
Bore Diameter (d) - 1.125 (+.0005 to -.0000) inch
Overall Width (B) - 2.062 (+.005 to -.010) inch
Groove Point Diameter (PD) - 3.5 inch
Groove Location (GL) - 1.03 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 2 inch
Dynamic Radial Load - 17590 lbs
Static Thrust Load - 13100 lbs
Static Radial Load - 27200 lbs
Equivalent Part Number in OSBORN - VLRY 5

♦ ♦ Images are for representation purposes only
