VTRY 3 RBC

Brand - RBC
Item Number - VTRY 3 RBC
Category - Track Runner (V-Grooved Yoke Style)
Inside Bearing Type - Ball Bearing (BB)

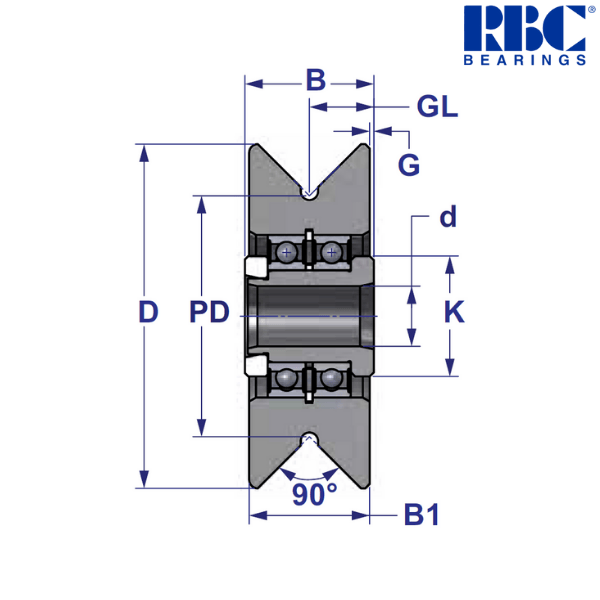

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 3 inch
Width (B1) - 1.25 inch
Bore Diameter (d) - 0.625 (+.0005 to -.0000) inch
Overall Width (B) - 1.312 (+.005 to -.010) inch
Groove Point Diameter (PD) - 2.062 inch
Groove Location (GL) - 0.656 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 1.125 inch
Dynamic Radial Load - 3400 lbs
Static Thrust Load - 1120 lbs
Static Radial Load - 1810 lbs
Equivalent Part Number in OSBORN - VLRY 3

♦ ♦ Images are for representation purposes only
