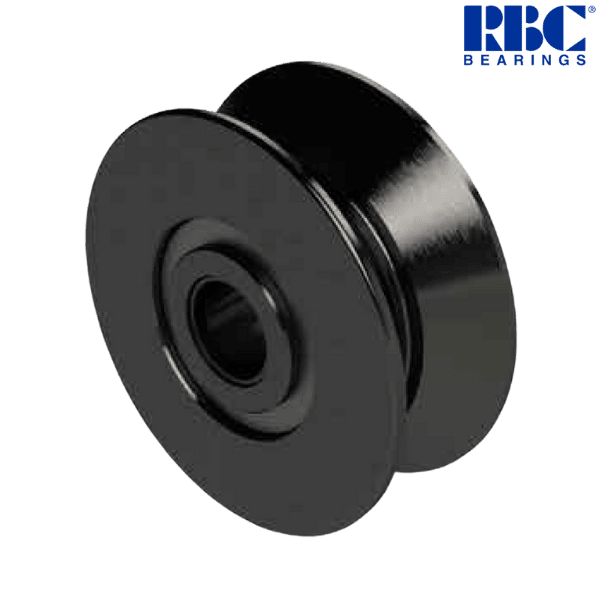

VTRY 3 3/4 RBC

Brand - RBC
Item Number - VTRY 3 3/4 RBC
Category - Track Runner (V-Grooved Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

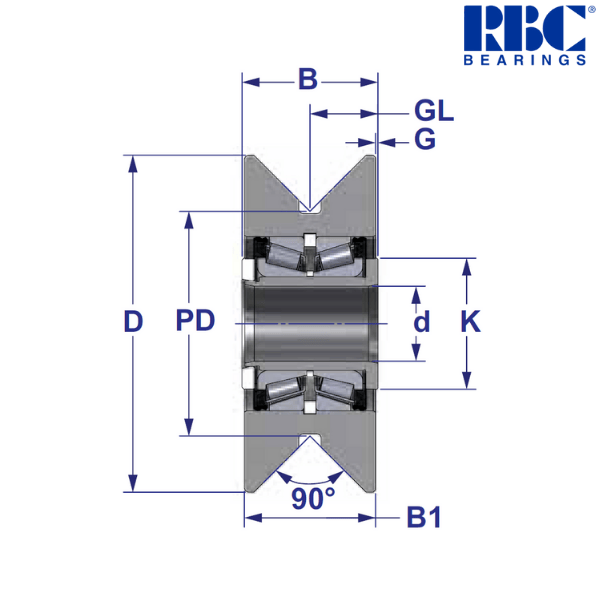

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 3.75 inch
Width (B1) - 1.5 inch
Bore Diameter (d) - 0.75 (+.0005 to -.0000) inch
Overall Width (B) - 1.562 (+.005 to -.010) inch
Groove Point Diameter (PD) - 2.5 inch
Groove Location (GL) - 0.781 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 1.25 inch
Dynamic Radial Load - 10880 lbs
Static Thrust Load - 4570 lbs
Static Radial Load - 7630 lbs
Equivalent Part Number in OSBORN - VLRY 3 - 3/4
