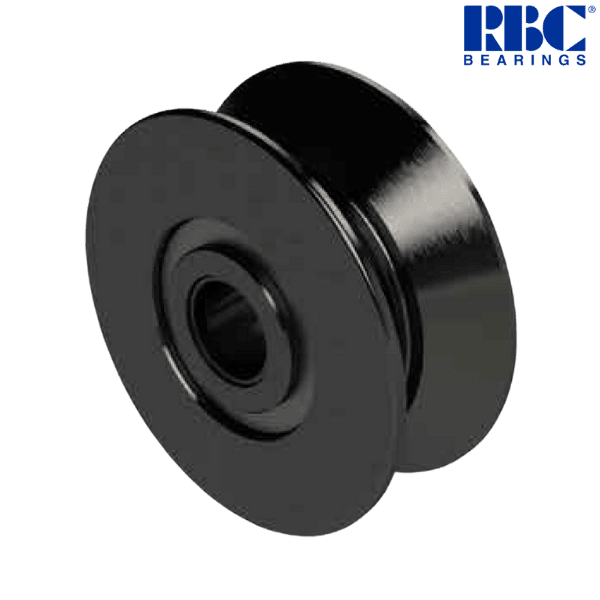

VTRY 2 1/2 RBC

Brand - RBC
Item Number - VTRY 2 1/2 RBC
Category - Track Runner (V-Grooved Yoke Style)
Inside Bearing Type - Ball Bearing (BB)

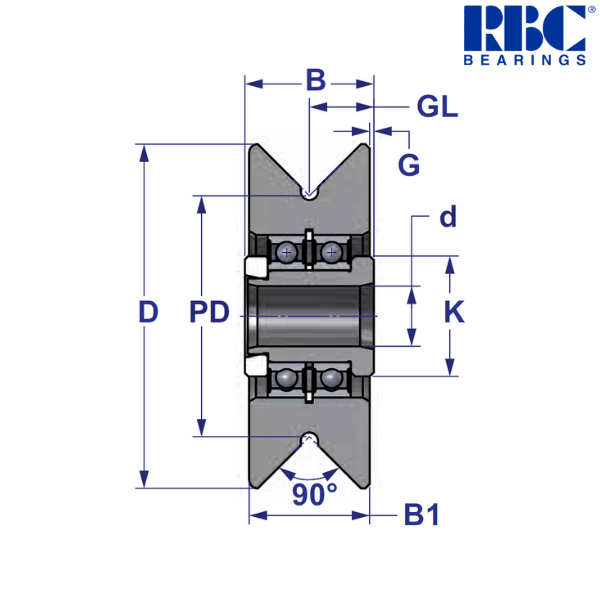

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 2.5 inch
Width (B1) - 0.875 inch
Bore Diameter (d) - 0.437 (+.0005 to -.0000) inch
Overall Width (B) - 0.937 (+.005 to -.010) inch
Groove Point Diameter (PD) - 1.75 inch
Groove Location (GL) - 0.468 inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 0.875 inch
Dynamic Radial Load - 1850 lbs
Static Thrust Load - 480 lbs
Static Radial Load - 780 lbs
Equivalent Part Number in OSBORN - VLRY 2 - 1/2

♦ ♦ Images are for representation purposes only
