VTRY 11 1/2 RBC

Brand - RBC
Item Number - VTRY 11 1/2 RBC
Category - Track Runner (V-Grooved Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

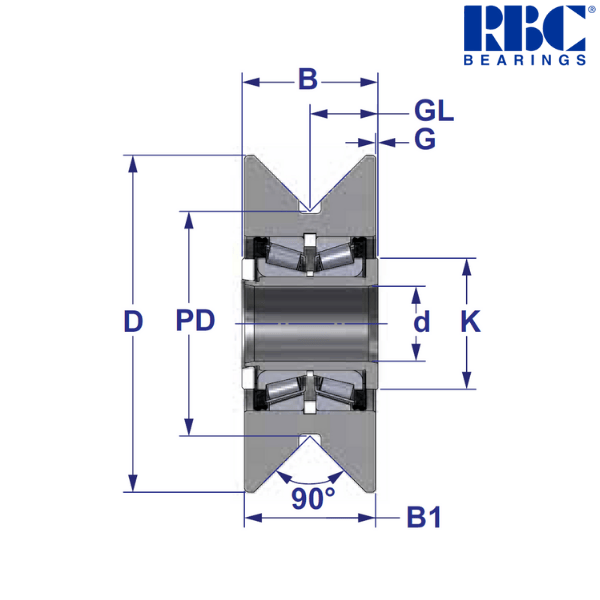

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 11.5 inch
Width (B1) - 5.25 inch
Bore Diameter (d) - 4.255 (+.001 to -.000) inch
Overall Width (B) - 5.5 (+.005 to -.010) inch
Groove Point Diameter (PD) - 10 inch
Groove Location (GL) - 2.75 inch
Shoulder Length (G) - 0.125 inch
Shoulder Diameter (K) - 6.5 inch
Dynamic Radial Load - 85220 lbs
Static Thrust Load - 42610 lbs
Static Radial Load - 85220 lbs
Equivalent Part Number in OSBORN - VLRY 11 - 1/2

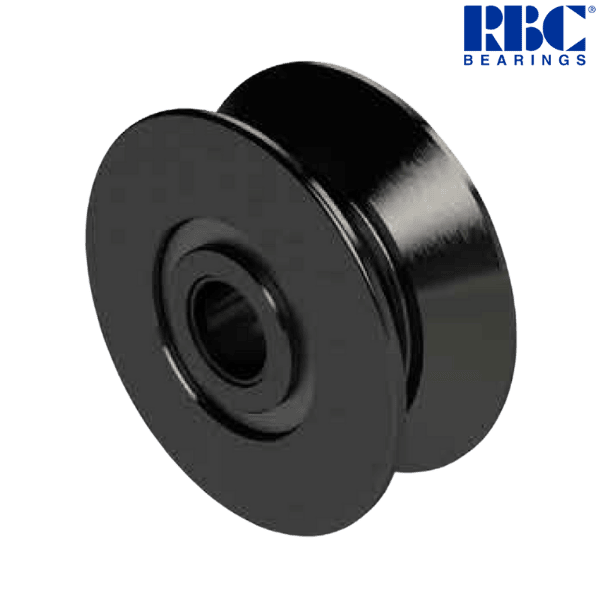

♦ ♦ Images are for representation purposes only
