VTR 7 1/2 RBC

Brand - RBC
Item Number - VTR 7 1/2 RBC
Category - Track Runner (V-Grooved, Stud Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

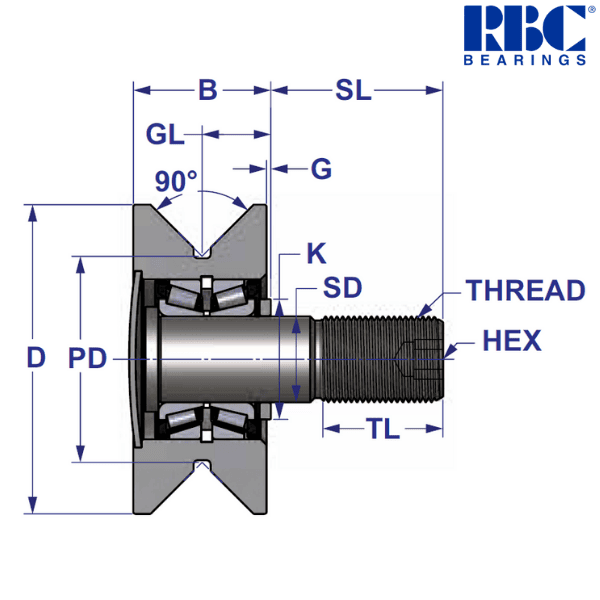

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 7.5 inch
Width of Roller (B) - 3 inch
Shank Diameter (SD) - 2.500 (+.000 to -.001) inch
Shank Length (SL) - 5.5 inch
Minimum Eff. Length Thread Length (TL) - 3.25 inch
Thread Class 2A - 2 1/2-12
Hex - 0.625 inch
Shoulder Length (G) - 0.062 inch
Shoulder Diameter (K) - 3.25 inch
Groove Point Diameter (PD) - 6 inch
Groove Location (GL) - 1.5 inch
Dynamic Radial Load - 35840 lbs
Static Thrust Load - 33100 lbs
Static Radial Load - 56400 lbs
Equivalent Part Number in OSBORN - VLR 7 - 1/2
Equivalent Part Number in McGill - VCF 7 1/2

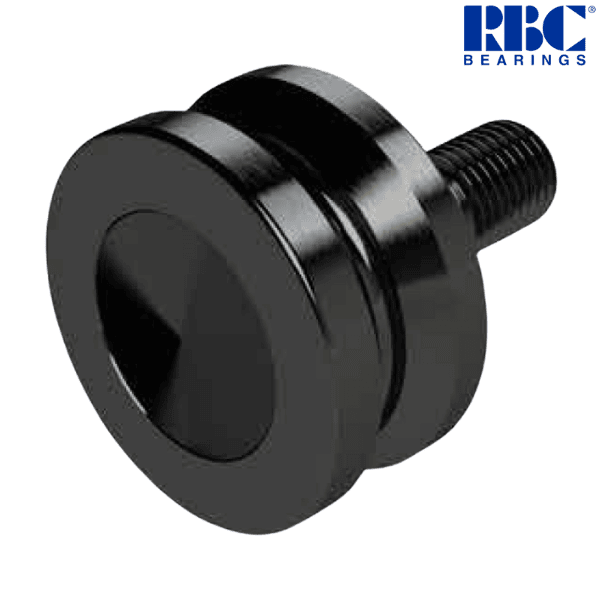

♦ ♦ Images are for representation purposes only
