VTR 3 1/2 RBC

Brand - RBC
Item Number - VTR 3 1/2 RBC
Category - Track Runner (V-Grooved, Stud Style)
Inside Bearing Type - Ball Bearing (BB)

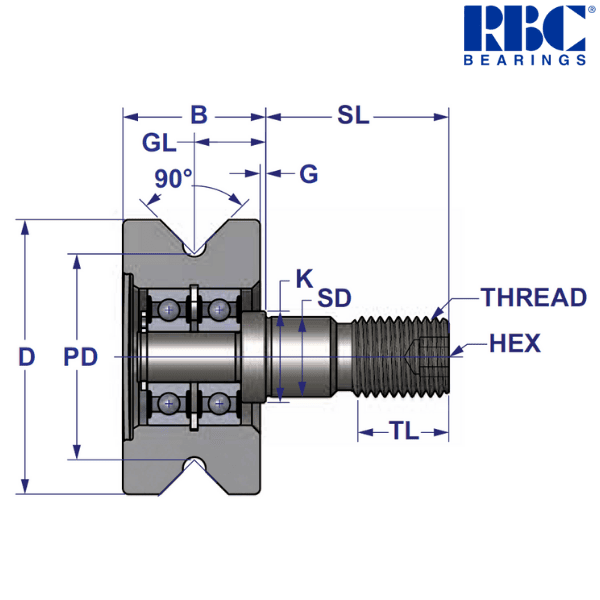

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 3.5 inch
Width of Roller (B) - 1.687 inch
Shank Diameter (SD) - 0.875 (+.000 to -.001) inch
Shank Length (SL) - 2 inch
Minimum Eff. Length Thread Length (TL) - 1.125 inch
Thread Class 2A - 7/8-14
Hex - 0.3125 inch
Shoulder Length (G) - 0.062 inch
Shoulder Diameter (K) - 1 inch
Groove Point Diameter (PD) - 2.25 inch
Groove Location (GL) - 0.875 inch
Dynamic Radial Load - 5190 lbs
Static Thrust Load - 1400 lbs
Static Radial Load - 2270 lbs
Equivalent Part Number in OSBORN - VLR 3 - 1/2
Equivalent Part Number in McGill - VCF 3 1/2

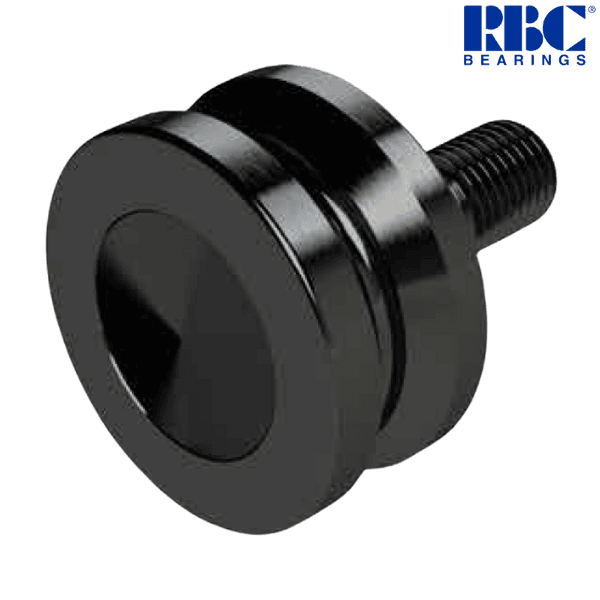

♦ ♦ Images are for representation purposes only
